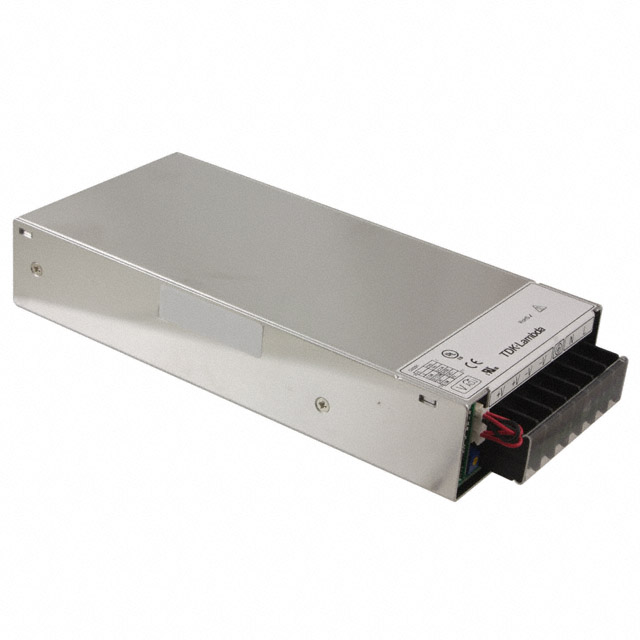

GWS500-36

Active

TDK-LAMBDA

SWITCHING POWER SUPPLIES 500W 36V 14A AC-DC 115-230VAC

Search across all available documentation for this part.

Active

TDK-LAMBDA

SWITCHING POWER SUPPLIES 500W 36V 14A AC-DC 115-230VAC

Technical Specifications

Parameters and characteristics for this part

Specification	GWS500-36

Applications	ITE (Commercial)
Approval Agency	CE
Current - Output 1	14 A
Efficiency	90 %
Features	DC Input Capable, Universal Input, Adjustable Output, Remote On/Off, Remote Sense
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	500 W
Size / Dimension [x]	8.58 "
Size / Dimension [x]	218 mm
Size / Dimension [y]	105 mm
Size / Dimension [y]	4.13 in
Size / Dimension [z]	41 mm
Size / Dimension [z]	1.61 "
Type	Enclosed
Voltage - Isolation	3000 V
Voltage - Output 1	36 V

Switching Power Supplies 500W 24V 21A AC-DC 115-230VAC

Part	Applications	Current - Output 1	Type	Features	Approval Agency	Mounting Type	Efficiency	Voltage - Isolation	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Power (Watts)	Number of Outputs	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]
TDK-LAMBDA GWS500-36	ITE (Commercial)	14 A	Enclosed	Adjustable Output DC Input Capable Remote On/Off Remote Sense Universal Input	CE	Chassis Mount	90 %	3000 V	41 mm	8.58 "	105 mm	218 mm	1.61 "	4.13 in	500 W	1	36 V	-25 °C	70 °C
