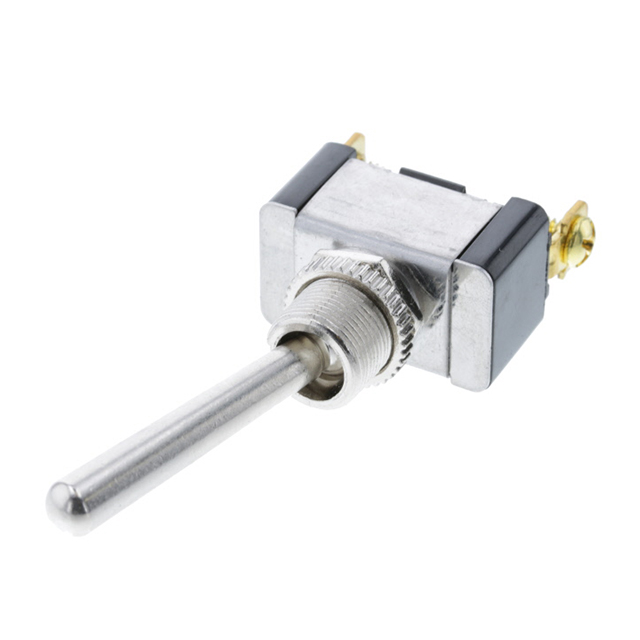

TA2-1A-AC-6-L

Active

Switch Components

VAC SPST OFF-ON, SCREW, 15/32

Search across all available documentation for this part.

Active

Switch Components

VAC SPST OFF-ON, SCREW, 15/32

Technical Specifications

Parameters and characteristics for this part

Specification	TA2-1A-AC-6-L

Actuator Length [x]	34.8 mm
Actuator Type	Standard Round
Bushing Thread	15/32-32
Circuit	SPST
Current Rating (Amps)	12 A
Illumination	Non-Illuminated
Panel Cutout Dimensions [diameter]	12.2 mm
Switch Function	On-Off
Termination Style	Screw Terminal
Voltage Rating - AC	250 V

Part	Actuator Type	Switch Function	Termination Style	Current Rating (Amps)	Actuator Length [x]	Circuit	Illumination	Bushing Thread	Panel Cutout Dimensions [diameter]	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC	Electrical Life	Ingress Protection
Switch Components TA2-1A-AC-5	Standard Round	On-Off	Solder Lug	12 A	16.5 mm	SPST	Non-Illuminated	15/32-32	12.2 mm	250 V
Switch Components TA2-1A-AC-1	Standard Round	On-Off	Quick Connect - 0.250" (6.3mm)	12 A	16.5 mm	SPST	Non-Illuminated	15/32-32	12.2 mm	250 V	65 °C	0 °C
Switch Components TA2-1A-DC-1	Standard Round	On-Off	Quick Connect - 0.250" (6.3mm)	20 A 21 A	16.5 mm	SPST	Non-Illuminated	15/32-32	12 mm	125 V	85 °C	-20 C	14 V	6000 Cycles
Switch Components TA2-1A-AC-6	Standard Round	On-Off	Screw Terminal	12 A	16.5 mm	SPST	Non-Illuminated	15/32-32	12.2 mm	250 V	65 °C	0 °C
Switch Components TA2-1A-DC-1-O	Standard Round	On-Off	Quick Connect - 0.250" (6.3mm)	20 A 21 A	16.5 mm	SPST	Non-Illuminated	15/32-32	12 mm	125 V	85 °C	-20 C	14 V	6000 Cycles	IP55 - Dust Protected Water Resistant
Switch Components TA2-1A-AC-6-O	Standard Round	On-Off	Screw Terminal	12 A	16.5 mm	SPST	Non-Illuminated	15/32-32	12.2 mm	250 V					IP55 - Dust Protected Water Resistant
Switch Components TA2-1A-DC-6-L	Standard Round	On-Off	Quick Connect - 0.250" (6.3mm)	20 A 21 A	34.8 mm	SPST	Non-Illuminated	15/32-32	12 mm	125 V	65 °C	0 °C	14 V
Switch Components TA2-1A-AC-6-L	Standard Round	On-Off	Screw Terminal	12 A	34.8 mm	SPST	Non-Illuminated	15/32-32	12.2 mm	250 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Toggle Switch SPST Panel Mount
