uClamp1211P.TCT

Active

Semtech Corporation

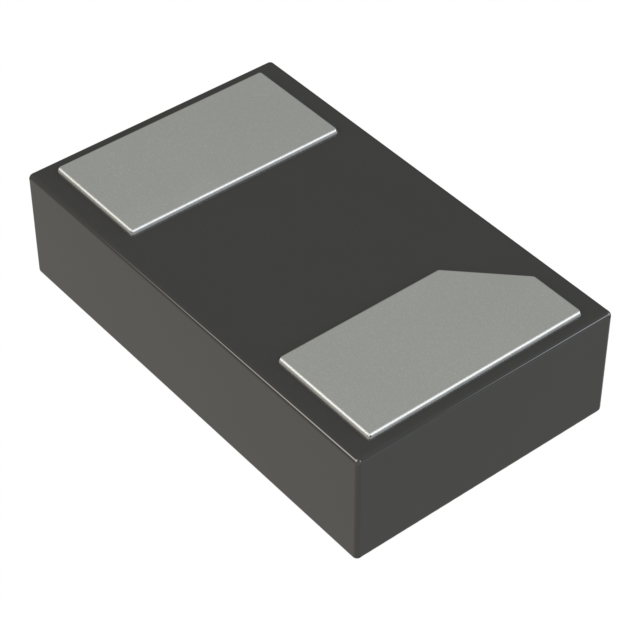

ESD PROTECTION DEVICE, 28.5 V, DFN1006, 2 PINS, 12 V, ΜCLAMP SERIES

Search across all available documentation for this part.

Active

Semtech Corporation

ESD PROTECTION DEVICE, 28.5 V, DFN1006, 2 PINS, 12 V, ΜCLAMP SERIES

Technical Specifications

Parameters and characteristics for this part

Specification	uClamp1211P.TCT

Applications	General Purpose
Bidirectional Channels [custom]	1
Capacitance @ Frequency	25 pF
Current - Peak Pulse (10/1000µs)	7 A
Mounting Type	Surface Mount
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-55 °C
Package / Case	0402 (1006 Metric)
Power - Peak Pulse	200 W
Power Line Protection	False
Type	Zener
Voltage - Breakdown (Min) [Min]	13.3 V
Voltage - Clamping (Max) @ Ipp [Max]	28.5 V
Voltage - Reverse Standoff (Typ)	12 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Breakdown (Min) [Min]	Mounting Type	Capacitance @ Frequency	Current - Peak Pulse (10/1000µs)	Power - Peak Pulse	Bidirectional Channels [custom]	Voltage - Clamping (Max) @ Ipp [Max]	Power Line Protection	Voltage - Reverse Standoff (Typ)	Type	Applications	Package / Case	Package / Case	Supplier Device Package
Semtech Corporation uClamp1211P.TCT	125 ¯C	-55 °C	13.3 V	Surface Mount	25 pF	7 A	200 W	1	28.5 V		12 V	Zener	General Purpose	0402 (1006 Metric)
Semtech Corporation UCLAMP1211Z.TNT	125 ¯C	-55 °C	13.3 V	Surface Mount	19 pF	5 A	125 W	1	25 V		12 V	Zener	General Purpose	0201	0603 Metric	SLP0603P2X3

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

High ESD withstand Voltage: +/-30kV (Contact) and +/-30kV (Air) per IEC 61000-4-2

Ultra-small package(1.0 x 0.6 x 0.5mm)

Protects one I/O or power line
