3PS-500-2-RD-S-2

Active

BRADY

SLEEVE, 0.5 IN DIA X 1 IN W

Search across all available documentation for this part.

Active

BRADY

SLEEVE, 0.5 IN DIA X 1 IN W

Technical Specifications

Parameters and characteristics for this part

Part	Label Size [y]	Label Size [Min] [diameter]	Label Size [Max] [diameter]	Label Size [x]	Operating Temperature [Max]	Operating Temperature [Min]	Label Type	Material	Color	Label Size [Max]	Label Size [Min]	Label Size [diameter]	Label Size [diameter]	Label Size [x]
BRADY 3PS-500-2-OR	0.85 in 21.6 mm	0.25 in 6.4 mm	0.45 in 11.4 mm	50.8 mm	135 °C	-55 °C	Heat Shrinkable	Polyolefin (PO)
BRADY 3PS-500-2-YL-S-2				25.4 mm	135 °C	-55 °C	Heat Shrinkable	Polyolefin (PO)	Yellow	0.45 " 11.4 mm	0.19 " 4.8 mm	12.7 mm
BRADY 3PS-500-2-RD-S-2				25.4 mm	135 °C	-55 °C	Heat Shrinkable	Polyolefin (PO)	Red	0.45 " 11.4 mm	0.19 " 4.8 mm	12.7 mm
BRADY 3PS-500-2-VT-S-2				25.4 mm	135 °C	-55 °C	Heat Shrinkable	Polyolefin (PO)	Violet	0.45 " 11.4 mm	0.19 " 4.8 mm	12.7 mm
BRADY 3PS-500-2-BL-S-2				25.4 mm	135 °C	-55 °C	Heat Shrinkable	Polyolefin (PO)	Blue	0.45 " 11.4 mm	0.19 " 4.8 mm	12.7 mm
BRADY 3PS-500-2-VT-2				25.4 mm	135 °C	-55 °C	Heat Shrinkable	Polyolefin (PO)	Violet	0.45 " 11.4 mm	0.19 " 4.8 mm	12.7 mm
BRADY 3PS-500-2-BK-S-2				25.4 mm	135 °C	-55 °C	Heat Shrinkable	Polyolefin (PO)	Black	0.45 " 11.4 mm	0.19 " 4.8 mm	12.7 mm
BRADY 3PS-500-2-WT				50.8 mm	135 °C	-55 °C	Heat Shrinkable	Polyolefin (PO)	White			0.19 in 0.45 in 4.8 mm 11.4 mm 12.7 mm	0.5 "	2 "
BRADY 3PS-500-2-OR-2				25.4 mm	135 °C	-55 °C	Heat Shrinkable	Polyolefin (PO)		0.45 " 11.4 mm	0.19 " 4.8 mm	12.7 mm
BRADY 3PS-500-2-BR-S-2				25.4 mm	135 °C	-55 °C	Heat Shrinkable	Polyolefin (PO)	Brown	0.45 " 11.4 mm	0.19 " 4.8 mm	12.7 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 535.17

General part information

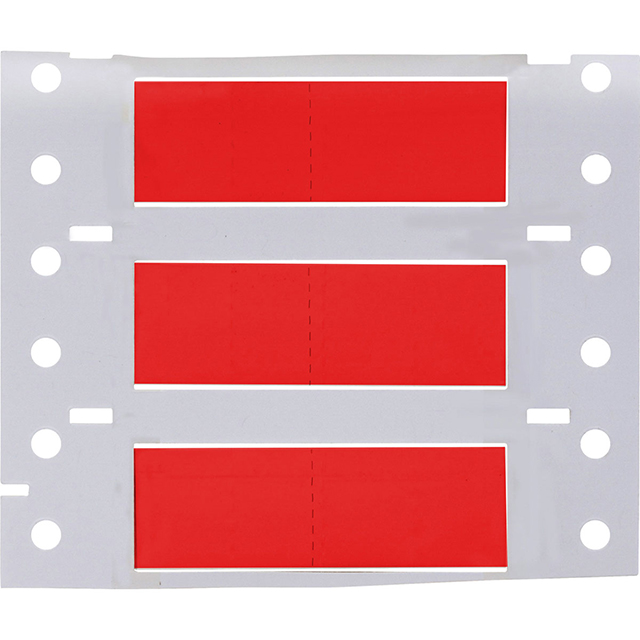

Red Heat Shrinkable Label 1.00" W x 0.50" Dia (25.4mm x 12.7mm); Cable O.D. 0.19" ~ 0.45" (4.8mm ~ 11.4mm)
