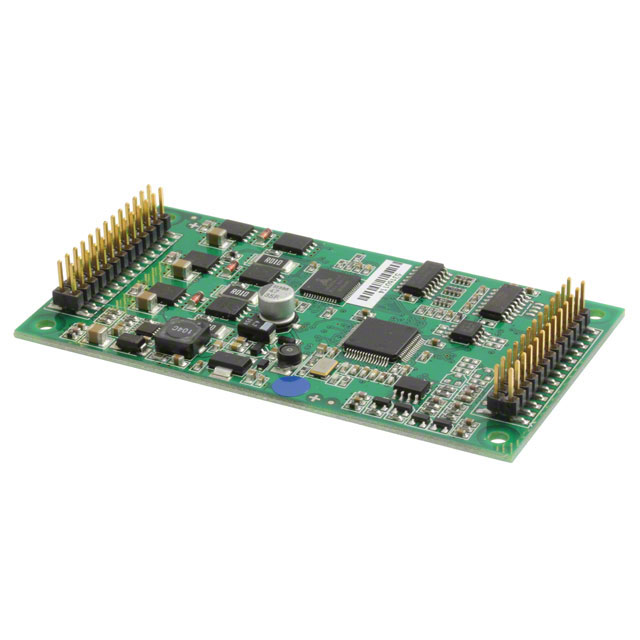

TMCM-1630-2C

Obsolete

Analog Devices Inc./Maxim Integrated

BRUSHLESS DRIVER 10A 12-48V LOAD

Search across all available documentation for this part.

Obsolete

Analog Devices Inc./Maxim Integrated

BRUSHLESS DRIVER 10A 12-48V LOAD

Technical Specifications

Parameters and characteristics for this part

Specification	TMCM-1630-2C

Control / Drive Type	Brushless
Current - Output	10 A
For Use With/Related Products	BB-163X
Interface	CAN, RS-232
Motor Type	Brushless (BLDC)
Mounting Type	Chassis Mount
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-25 °C
Type	Board
Voltage - Load [Max]	48 V
Voltage - Load [Min]	12 V
Voltage - Supply [Max]	48 V
Voltage - Supply [Min]	12 V

Part	Interface	Motor Type	Voltage - Load [Max]	Voltage - Load [Min]	Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	For Use With/Related Products	Current - Output	Control / Drive Type
Analog Devices Inc./Maxim Integrated TMCM-1630-2C	CAN RS-232	Brushless (BLDC)	48 V	12 V	Board	12 V	48 V	Chassis Mount	-25 °C	60 °C	BB-163X	10 A	Brushless

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Brushless 12 ~ 48VDC Supply 10A 12 ~ 48V Load

Technical documentation and resources

No documents available
