V62/15604-01YE
ActiveTPS57140-EP 1.5-A 42-V STEP-DOWN DC-DC CONVERTER WITH ECO-MODE™ CONTROL
Deep-Dive with AI
Search across all available documentation for this part.
V62/15604-01YE
ActiveTPS57140-EP 1.5-A 42-V STEP-DOWN DC-DC CONVERTER WITH ECO-MODE™ CONTROL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | V62/15604-01YE |
|---|---|
| Current - Output | 1.5 A |
| Frequency - Switching [Max] | 2.5 MHz |
| Frequency - Switching [Min] | 100 kHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Output Configuration | Positive |
| Output Type | Adjustable |

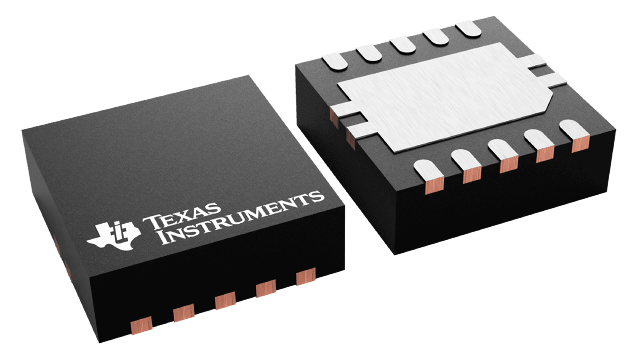

| Package / Case | 10-VFDFN Exposed Pad |
| Supplier Device Package | 10-VSON (3x3) |
| Synchronous Rectifier | False |
| Topology | Buck |
| Voltage - Input (Max) [Max] | 42 V |
| Voltage - Input (Min) [Min] | 3.5 V |
| Voltage - Output (Max) [Max] | 39 V |
| Voltage - Output (Min/Fixed) | 0.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 3000 | $ 15.05 | |
| Texas Instruments | LARGE T&R | 1 | $ 19.98 | |
| 100 | $ 17.45 | |||
| 250 | $ 13.46 | |||
| 1000 | $ 12.04 | |||
Description
General part information
TPS57140-EP Series
The TPS57140-Q1 device is a 42-V, 1.5-A step-down regulator with an integrated high-side MOSFET. Current-mode control provides simple external compensation and flexible component selection. A low-ripple pulse-skip mode reduces the no-load, regulated output supply current to 116 μA. When the enable pin is in the low state, the shutdown current is reduced to 1.5 µA.
Undervoltage lockout is internally set at 2.5 V, but can be increased using the enable pin. The output voltage startup ramp is controlled by the slow-start pin that can also be configured for sequencing or tracking. An open-drain power-good signal indicates the output is within 92% to 109% of its nominal voltage.
A wide switching-frequency range allows optimization of efficiency and external component size. Frequency foldback and thermal shutdown protect the part during an overload condition.
