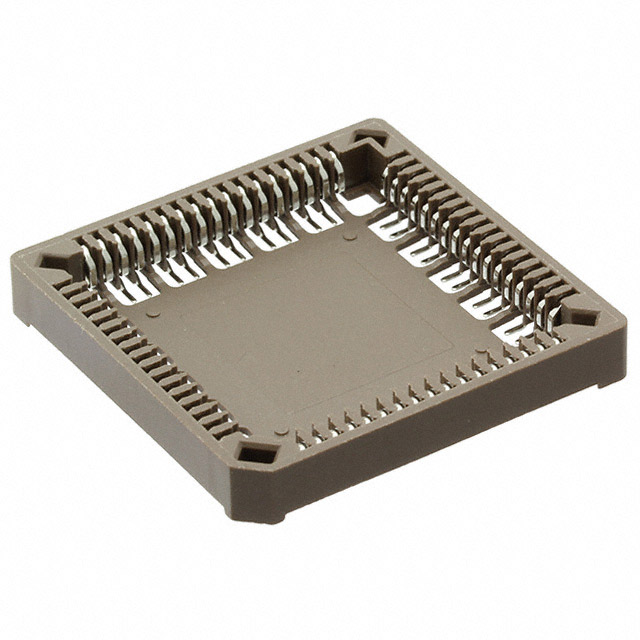

ED068PLCZ-SM-N

Active

On Shore Technology Inc.

CONN SOCKET PLCC 68POS

Search across all available documentation for this part.

Active

On Shore Technology Inc.

CONN SOCKET PLCC 68POS

Technical Specifications

Parameters and characteristics for this part

Specification	ED068PLCZ-SM-N

Contact Material - Mating	Phosphor Bronze
Contact Material - Post	Phosphor Bronze
Contact Resistance	30 mOhm
Current Rating (Amps)	1 A
Features	Closed Frame
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions or Pins (Grid)	68
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Pitch - Post	1.27 mm
Pitch - Post	0.05 in
Termination	Solder
Type	PLCC

Part	Current Rating (Amps)	Mounting Type	Type	Contact Material - Mating	Contact Resistance	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Termination	Pitch - Mating	Pitch - Mating	Pitch - Post	Pitch - Post	Contact Material - Post	Features	Number of Positions or Pins (Grid)
On Shore Technology Inc. ED068PLCZ-SM-N	1 A	Surface Mount	PLCC	Phosphor Bronze	30 mOhm	105 ░C	-55 °C	UL94 V-0	Solder	0.05 in	1.27 mm	1.27 mm	0.05 in	Phosphor Bronze	Closed Frame	68

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	76	$ 1.15

General part information

68 (2 x 34) Pos PLCC Socket Surface Mount
