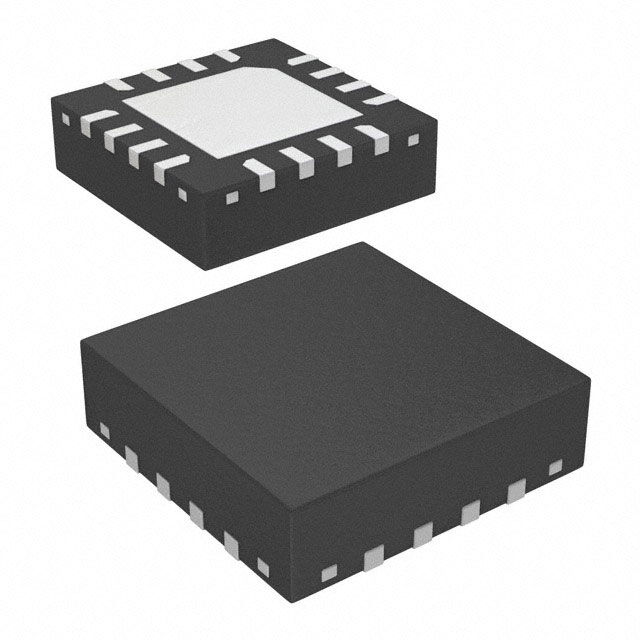

A3916GESTR-T

Active

Allegro MicroSystems

IC MTR DRV BIPOLAR 2.7-15V 16QFN

Search across all available documentation for this part.

Active

Allegro MicroSystems

IC MTR DRV BIPOLAR 2.7-15V 16QFN

Technical Specifications

Parameters and characteristics for this part

Specification	A3916GESTR-T

Applications	General Purpose
Current - Output	1 A
Function	Driver - Fully Integrated, Control and Power Stage
Interface	Parallel
Motor Type - AC, DC	Brushed DC
Motor Type - Stepper	Bipolar
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Half Bridge (4)
Package / Case	16-WFQFN Exposed Pad
Step Resolution	1, 0.5
Supplier Device Package	16-QFN/MLP (3x3)
Technology	DMOS
Voltage - Load [Max]	15 V
Voltage - Load [Min]	2.7 V
Voltage - Supply [Max]	15 V
Voltage - Supply [Min]	2.7 V

Part	Applications	Step Resolution	Operating Temperature [Max]	Operating Temperature [Min]	Motor Type - AC, DC	Package / Case	Motor Type - Stepper	Voltage - Supply [Min]	Voltage - Supply [Max]	Voltage - Load [Min]	Voltage - Load [Max]	Output Configuration	Technology	Mounting Type	Supplier Device Package	Current - Output	Function	Interface
Allegro MicroSystems A3916GESTR-T	General Purpose	0.5 1	150 °C	-40 °C	Brushed DC	16-WFQFN Exposed Pad	Bipolar	2.7 V	15 V	2.7 V	15 V	Half Bridge (4)	DMOS	Surface Mount	16-QFN/MLP (3x3)	1 A	Driver - Fully Integrated Control and Power Stage	Parallel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bipolar Motor Driver DMOS Parallel 16-QFN/MLP (3x3)
