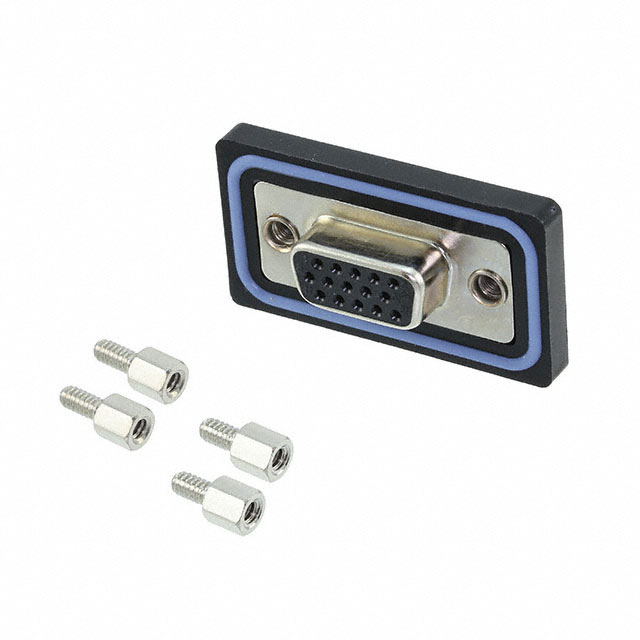

A-HDF 15 LL-WP
ActiveAssmann WSW Components
CONN D-SUB HD RCPT 15POS PNL MNT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A-HDF 15 LL-WP
ActiveAssmann WSW Components
CONN D-SUB HD RCPT 15POS PNL MNT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | A-HDF 15 LL-WP |
|---|---|
| Color | Black |
| Connector Style | High Density, D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Dielectric Material | Glass Filled, Polyamide (PA), Nylon |
| Flange Feature | Female Screwlock, Mating Side |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Number of Positions | 15 |
| Number of Rows | 3 |
| Shell Size, Connector Layout [custom] | DE, E |
| Shell Size, Connector Layout [custom] | 1 |
| Shell Size, Connector Layout [custom] | High Density |
| Wire Gauge [Max] | 28 AWG |
| Wire Gauge [Min] | 24 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 12.42 | |
| 10 | $ 11.01 | |||
| 30 | $ 10.59 | |||
| 60 | $ 10.16 | |||
| 90 | $ 9.60 | |||
| 240 | $ 8.75 | |||
| 450 | $ 8.19 | |||
| 960 | $ 7.51 | |||
Description
General part information
A-HDF 15 Series
15 Position D-Sub, High Density Receptacle, Female Sockets Connector
