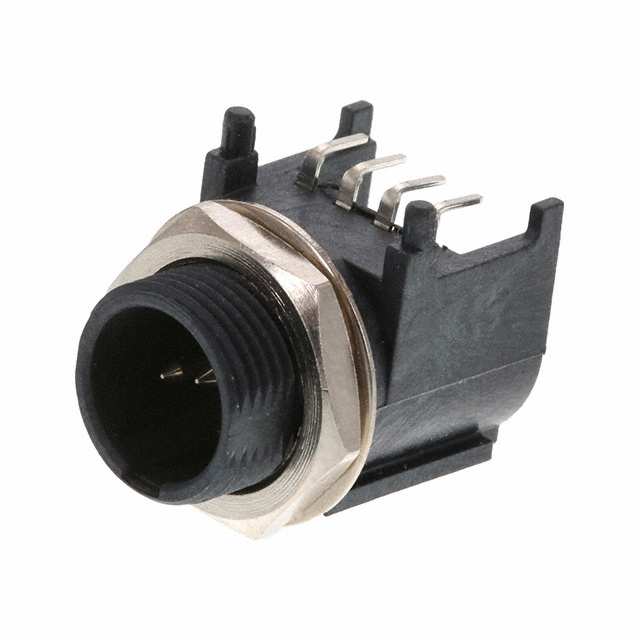

TRASM4MX

Active

Switchcraft Inc.

CONN RCPT MALE MINI XLR 4P SLDR

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN RCPT MALE MINI XLR 4P SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	TRASM4MX

Applications	Medical, Testing Equipment & Measurement, Audio
Color	Black
Connector Type	Receptacle, Male Pins
Contact Material	Brass
Current Rating (Amps)	5 A
Fastening Type	Latch Lock
Features	Board Guide
Insert Material	Thermoplastic
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Surface Mount, Right Angle
Number of Positions	4
Orientation	Keyed
Primary Material	Plastic
Shell Size - Insert	Mini XLR
Termination	Solder

Part	Current Rating (Amps)	Mounting Feature	Primary Material	Number of Positions	Orientation	Color	Connector Type	Insert Material	Applications	Shell Size - Insert	Contact Material	Mounting Type	Features	Termination	Fastening Type
Switchcraft Inc. TRASM4MX	5 A	Bulkhead - Front Side Nut	Plastic	4	Keyed	Black	Male Pins Receptacle	Thermoplastic	Audio Medical Testing Equipment & Measurement	Mini XLR	Brass	Surface Mount Right Angle	Board Guide	Solder	Latch Lock

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Receptacle, Male Pins Solder
