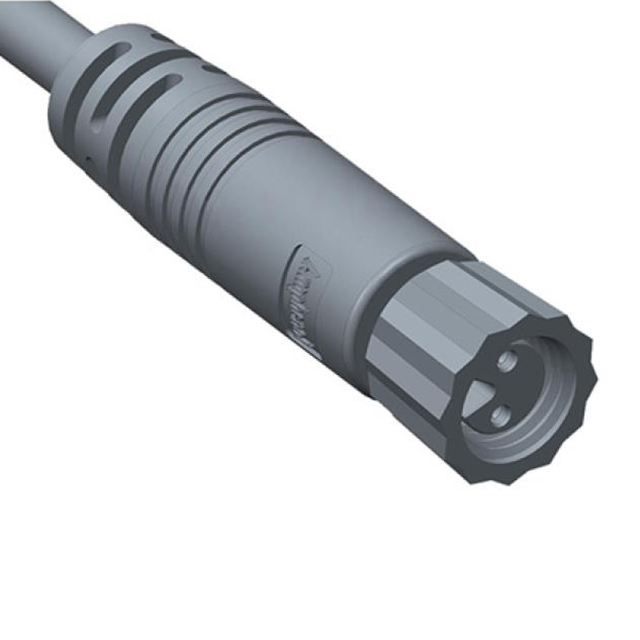

8AP-05AFFM-SL7A01

Active

Amphenol LTW

CIRC CBL 5POS RCPT TO WIRE 3.28'

Deep-Dive with AI

Search across all available documentation for this part.

8AP-05AFFM-SL7A01

Active

Amphenol LTW

CIRC CBL 5POS RCPT TO WIRE 3.28'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	8AP-05AFFM-SL7A01

1st Connector Gender	Female Sockets
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	5
1st Connector Number of Positions Loaded	All
1st Connector Orientation [custom]	Keyed
1st Connector Shell Size - Insert	M8
1st Connector Type	Receptacle
2nd Connector Type	Wire Leads
Assembly Configuration	Standard
Cable Material	Polyvinyl Chloride (PVC)
Cable Type	Round
Color	Black
Ingress Protection	IP67 - Dust Tight, Waterproof
Length [x]	1 m
Length [x]	3.28 ft
Shielding	Unshielded
Usage	Industrial Environments

8AP-05AFFM Series

Part	1st Connector Mounting Type	1st Connector Number of Positions	1st Connector Shell Size - Insert	1st Connector Orientation [custom]	Usage	1st Connector Type	Cable Material	Length [x]	Length [x]	1st Connector Gender	Color	Cable Type	1st Connector Number of Positions Loaded	2nd Connector Type	Shielding	Ingress Protection	Assembly Configuration
Amphenol LTW 8AP-05AFFM-SR7A01	Free Hanging (In-Line)	5	M8	Keyed	Industrial Environments	Receptacle Right Angle	Polyvinyl Chloride (PVC)	1 m	3.28 ft	Female Sockets	Black	Round	All	Wire Leads	Unshielded	IP67 - Dust Tight Waterproof	Standard
Amphenol LTW 8AP-05AFFM-QL5A10	Free Hanging (In-Line)	5	M8	Keyed	Industrial Environments	Plug	Polyvinyl Chloride (PVC)			Female Sockets	Black	Round	All	Wire Leads	Unshielded	IP65 - Dust Tight Water Resistant	Standard
Amphenol LTW 8AP-05AFFM-SL7A10	Free Hanging (In-Line)	5	M8	Keyed	Industrial Environments	Receptacle	Polyvinyl Chloride (PVC)			Female Sockets	Black	Round	All	Wire Leads	Unshielded	IP67 - Dust Tight Waterproof	Standard
Amphenol LTW 8AP-05AFFM-SL7A01	Free Hanging (In-Line)	5	M8	Keyed	Industrial Environments	Receptacle	Polyvinyl Chloride (PVC)	1 m	3.28 ft	Female Sockets	Black	Round	All	Wire Leads	Unshielded	IP67 - Dust Tight Waterproof	Standard
Amphenol LTW 8AP-05AFFM-QL5A05	Free Hanging (In-Line)	5	M8	Keyed	Industrial Environments	Plug	Polyvinyl Chloride (PVC)	500 mm	1.64 ft	Female Sockets	Black	Round	All	Wire Leads	Unshielded	IP65 - Dust Tight Water Resistant	Standard
Amphenol LTW 8AP-05AFFM-SR7A03	Free Hanging (In-Line)	5	M8	Keyed	Industrial Environments	Receptacle Right Angle	Polyvinyl Chloride (PVC)	3 m	9.84 ft	Female Sockets	Black	Round	All	Wire Leads	Unshielded	IP67 - Dust Tight Waterproof	Standard

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 13.09
		10	$ 10.06
		25	$ 9.09
		50	$ 8.43
		100	$ 7.84
		250	$ 7.14
		500	$ 6.67
		1000	$ 6.24

Description

General part information

8AP-05AFFM Series

Circular Cable Assembly Unshielded 3.28' (1.00m)

Documents

Technical documentation and resources

No documents available
