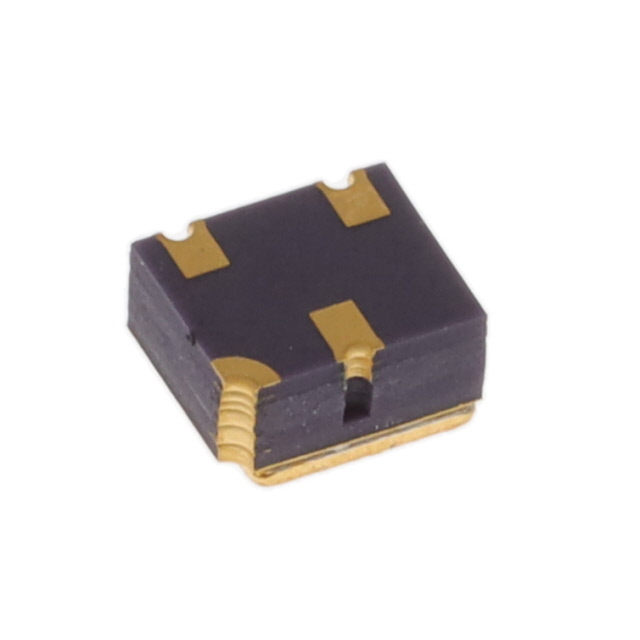

EPC7014UBC

Active

EPC Space, LLC

GAN FET HEMT 60V 1A COTS 4UB

Search across all available documentation for this part.

Active

EPC Space, LLC

GAN FET HEMT 60V 1A COTS 4UB

Technical Specifications

Parameters and characteristics for this part

Specification	EPC7014UBC

Current - Continuous Drain (Id) @ 25°C	1 A
Drain to Source Voltage (Vdss)	60 V
Drive Voltage (Max Rds On, Min Rds On)	5 V
FET Type	N-Channel
Input Capacitance (Ciss) (Max) @ Vds	22 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	4-SMD, No Lead
Rds On (Max) @ Id, Vgs [Max]	580 mOhm
Supplier Device Package	4-SMD
Technology	GaNFET (Gallium Nitride)
Vgs (Max) [Max]	7 V
Vgs (Max) [Min]	-4 V
Vgs(th) (Max) @ Id	2.5 V

Part	Vgs(th) (Max) @ Id	FET Type	Drive Voltage (Max Rds On, Min Rds On)	Operating Temperature [Min]	Operating Temperature [Max]	Rds On (Max) @ Id, Vgs [Max]	Drain to Source Voltage (Vdss)	Technology	Mounting Type	Vgs (Max) [Min]	Vgs (Max) [Max]	Package / Case	Current - Continuous Drain (Id) @ 25°C	Supplier Device Package	Input Capacitance (Ciss) (Max) @ Vds
EPC Space, LLC EPC7014UBC	2.5 V	N-Channel	5 V	-55 °C	150 °C	580 mOhm	60 V	GaNFET (Gallium Nitride)	Surface Mount	-4 V	7 V	4-SMD No Lead	1 A	4-SMD	22 pF

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

N-Channel 60 V 1A (Tc) Surface Mount 4-SMD
