8P1P006210GRF01
ActiveMH Connectors

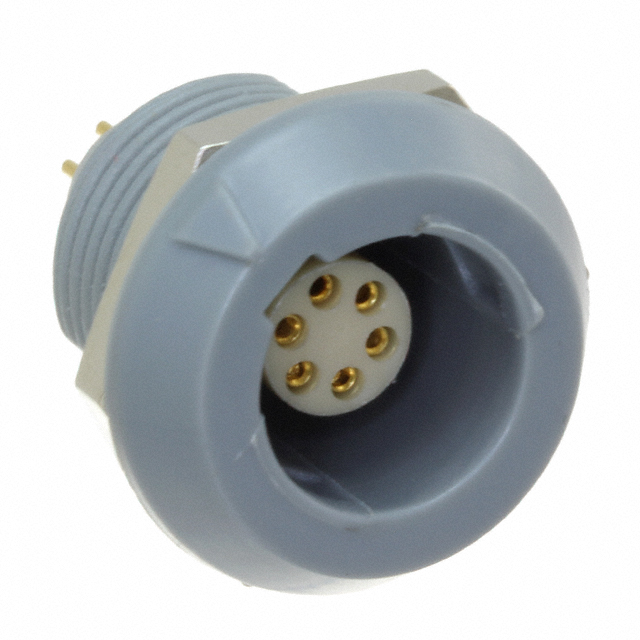

CONN RCPT FMALE 6POS GOLD SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
8P1P006210GRF01
ActiveMH Connectors
CONN RCPT FMALE 6POS GOLD SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 8P1P006210GRF01 |
|---|---|
| Color | Gray |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 7 µin |
| Contact Finish Thickness - Mating | 0.178 µm |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 6 A |
| Fastening Type | Push-Pull |
| Ingress Protection | IP50 |
| Insert Material | Polyphenylene Sulfide (PPS) |
| Mounting Feature | Bulkhead - Rear Side Nut |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 6 |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -20 C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Material | Polycarbonate (PC), Polyacrylonitrile Butadiene Styrene (ABS) |
| Shielding | Unshielded |
| Termination | Solder |
| Voltage Rating | 450 V |
8P1P006 Series
| Part | Connector Type | Contact Material | Shielding | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Current Rating (Amps) | Primary Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Color | Insert Material | Ingress Protection | Mounting Type | Shell Material | Voltage Rating | Orientation | Contact Finish - Mating | Features | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Termination | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MH Connectors | Male Pins Plug | Copper Alloy | Unshielded | 6 | -20 C | 120 °C | Push-Pull | 6 A | Plastic | 7 µin | 0.178 µm | Gray | Polyphenylene Sulfide (PPS) | IP50 | Free Hanging (In-Line) | Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC) | 450 V | Keyed | Gold | Backshell Strain Relief | 0.087 in | 0.157 in | 3.99 mm | 2.2 mm | ||
MH Connectors | Male Pins Plug | Copper Alloy | Unshielded | 6 | -20 C | 120 °C | Push-Pull | 6 A | Plastic | 7 µin | 0.178 µm | Blue Gray | Polyphenylene Sulfide (PPS) | IP50 | Free Hanging (In-Line) | Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC) | 450 V | Keyed | Gold | 0.197 in | 0.236 in | 6 mm | 5 mm | |||
MH Connectors | Male Pins Plug | Copper Alloy | Unshielded | 6 | -20 C | 120 °C | Push-Pull | 6 A | Plastic | 7 µin | 0.178 µm | Gray Red | Polyphenylene Sulfide (PPS) | IP50 | Free Hanging (In-Line) | Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC) | 450 V | Keyed | Gold | 0.157 in | 0.197 in | 5 mm | 4 mm | |||
MH Connectors | Receptacle Female Sockets | Copper Alloy | Unshielded | 6 | -20 C | 120 °C | Push-Pull | 6 A | Plastic | 7 µin | 0.178 µm | Gray | Polyphenylene Sulfide (PPS) | IP50 | Panel Mount Right Angle Through Hole | Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC) | 450 V | Keyed | Gold | Solder | Bulkhead - Front Side Nut | |||||
MH Connectors | Receptacle Female Sockets | Copper Alloy | Unshielded | 6 | -20 C | 120 °C | Push-Pull | 6 A | Plastic | 7 µin | 0.178 µm | Gray Red | Polyphenylene Sulfide (PPS) | IP50 | Panel Mount Through Hole | Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC) | 450 V | Keyed | Gold | Solder | Bulkhead - Front Side Nut | |||||
MH Connectors | Male Pins Plug | Copper Alloy | Unshielded | 6 | -20 C | 120 °C | Push-Pull | 6 A | Plastic | 7 µin | 0.178 µm | Polyphenylene Sulfide (PPS) | IP50 | Free Hanging (In-Line) | Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC) | 450 V | Keyed | Gold | 0.157 in | 0.197 in | 5 mm | 4 mm | ||||
MH Connectors | Receptacle Female Sockets | Copper Alloy | Unshielded | 6 | -20 C | 120 °C | Push-Pull | 6 A | Plastic | 7 µin | 0.178 µm | Blue Gray | Polyphenylene Sulfide (PPS) | IP50 | Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC) | 450 V | Keyed | Gold | Bulkhead - Front Side Nut | |||||||
MH Connectors | Receptacle Female Sockets | Copper Alloy | Unshielded | 6 | -20 C | 120 °C | Push-Pull | 6 A | Plastic | 7 µin | 0.178 µm | Gray | Polyphenylene Sulfide (PPS) | IP50 | Panel Mount Through Hole | Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC) | 450 V | Keyed | Gold | Solder | Bulkhead - Front Side Nut | |||||
MH Connectors | Receptacle Female Sockets | Copper Alloy | Unshielded | 6 | -20 C | 120 °C | Push-Pull | 6 A | Plastic | 7 µin | 0.178 µm | Gray | Polyphenylene Sulfide (PPS) | IP50 | Panel Mount Through Hole | Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC) | 450 V | Keyed | Gold | Solder | Bulkhead - Rear Side Nut | |||||
MH Connectors | Male Pins Plug | Copper Alloy | Unshielded | 6 | -20 C | 120 °C | Push-Pull | 6 A | Plastic | 7 µin | 0.178 µm | Blue Gray | Polyphenylene Sulfide (PPS) | IP50 | Free Hanging (In-Line) | Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC) | 450 V | Keyed | Gold | 0.157 in | 0.197 in | 5 mm | 4 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 20 | $ 11.66 | |
Description
General part information
8P1P006 Series
6 Position Circular Connector Receptacle, Female Sockets Solder
