132B9505

Active

Winchester Interconnect

COAX ADAPT SMA TO N

Search across all available documentation for this part.

Active

Winchester Interconnect

COAX ADAPT SMA TO N

Technical Specifications

Parameters and characteristics for this part

Specification	132B9505

Adapter Type	Jack to Jack
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Between Series
Convert From (Adapter End)	Female Socket, SMA Jack
Convert To (Adapter End)	Female Socket, N Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)

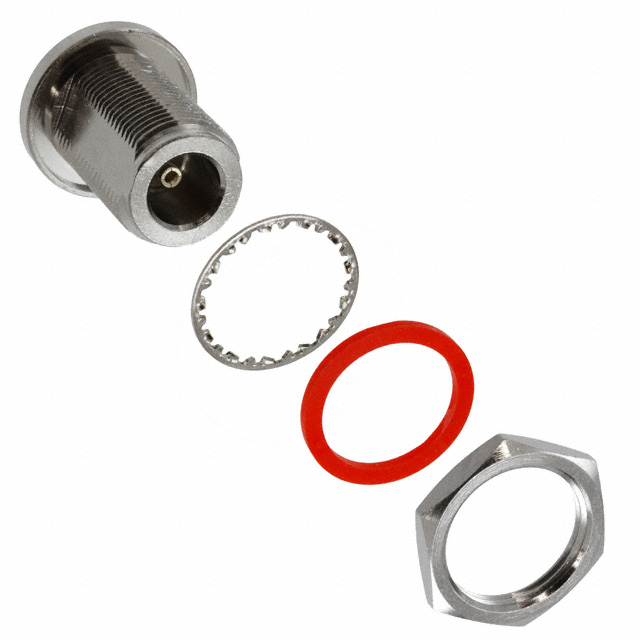

Includes	1 Gasket, 1 Connector, 1 Nut, 1 Lockwasher
Mounting Feature	Bulkhead
Style	Straight

Part	Center Gender	Conversion Type	Convert To (Adapter End)	Body Material	Body Finish	Convert From (Adapter End)	Center Contact Plating	Mounting Feature	Style	Dielectric Material	Center Contact Material	Includes	Adapter Type
Winchester Interconnect 132B9505	Female to Female	Between Series	Female Socket N Jack	Brass	Nickel	Female Socket SMA Jack	Gold	Bulkhead	Straight	Polytetrafluoroethylene (PTFE)	Beryllium Copper	1 Connector 1 Gasket 1 Lockwasher 1 Nut	Jack to Jack

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector SMA Jack, Female Socket To N Jack, Female Socket
