SG-8018CB 125.0000M-TJHPA3

Active

EPSON

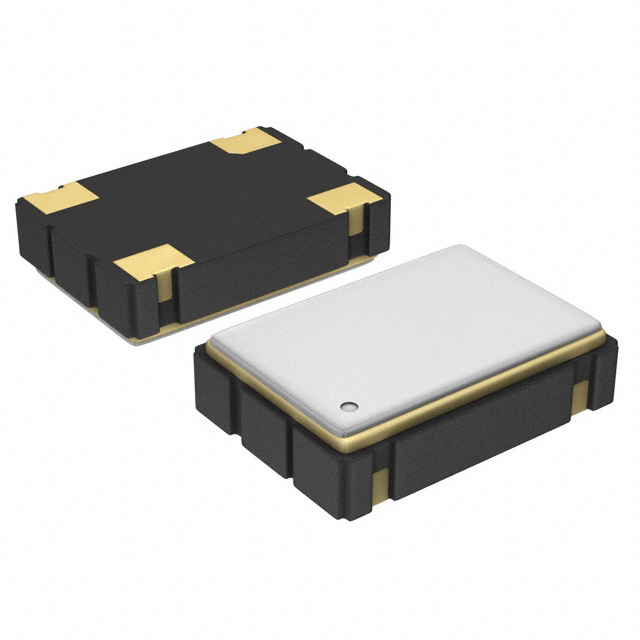

XTAL OSC XO 125.0000MHZ CMOS SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SG-8018CB 125.0000M-TJHPA3

Active

EPSON

XTAL OSC XO 125.0000MHZ CMOS SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SG-8018CB 125.0000M-TJHPA3

Base Resonator	Crystal
Current - Supply (Disable) (Max) [Max]	3.5 mA
Current - Supply (Max) [Max]	6.8 mA
Frequency	125 MHz
Frequency Stability	50 ppm
Function	Enable/Disable
Height - Seated (Max) [Max] [z]	1.3 mm
Height - Seated (Max) [Max] [z]	0.051 in
Mounting Type	Surface Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Output	CMOS
Package / Case	4-SMD, No Lead
Size / Dimension [x]	0.197 in
Size / Dimension [x]	5 mm
Size / Dimension [y]	0.126 "
Size / Dimension [y]	3.2 mm
Type	XO (Standard)
Voltage - Supply [Max]	3.3 V
Voltage - Supply [Min]	1.8 V

SG-8018 Series

...

Part	Current - Supply (Disable) (Max) [Max]	Frequency Stability	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Base Resonator	Type	Frequency	Package / Case	Voltage - Supply [Max]	Voltage - Supply [Min]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Function	Operating Temperature [Min]	Operating Temperature [Max]	Output	Current - Supply (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
EPSON SG-8018CG 37.1250M-TJHPA3	3.5 mA	50 ppm	Surface Mount	0.098 "	2 mm	2.5 mm	0.079 in	Crystal	XO (Standard)	37.125 MHz	4-SMD No Lead	3.3 V	1.8 V	0.8 mm	0.031 "	Enable/Disable	-40 °C	105 ░C	CMOS	6.8 mA
EPSON SG-8018CB 125.0000M-TJHPA3	3.5 mA	50 ppm	Surface Mount	0.197 in	3.2 mm	5 mm	0.126 "	Crystal	XO (Standard)	125 MHz	4-SMD No Lead	3.3 V	1.8 V	1.3 mm	0.051 in	Enable/Disable	-40 °C	105 ░C	CMOS	6.8 mA
EPSON SG-8018CA 50.0000M-TJHPAB	3.5 mA	50 ppm	Surface Mount	0.276 "	5 mm	7 mm	0.197 "	Crystal	XO (Standard)	50 MHz	4-SMD No Lead	3.3 V	1.8 V			Enable/Disable	-40 °C	105 ░C	CMOS	6.8 mA	1.4 mm	0.055 in
EPSON SG-8018CB 32.0000M-TJHPA3	3.5 mA	50 ppm	Surface Mount	0.197 in	3.2 mm	5 mm	0.126 "	Crystal	XO (Standard)	32 MHz	4-SMD No Lead	3.3 V	1.8 V	1.3 mm	0.051 in	Enable/Disable	-40 °C	105 ░C	CMOS	6.8 mA
EPSON SG-8018CA 16.0000M-TJHPA3	3.5 mA	50 ppm	Surface Mount	0.276 "	5 mm	7 mm	0.197 "	Crystal	XO (Standard)	16 MHz	4-SMD No Lead	3.3 V	1.8 V			Enable/Disable	-40 °C	105 ░C	CMOS	6.8 mA	1.4 mm	0.055 in
EPSON SG-8018CE 25.0000M-TJHPA3	3.5 mA	50 ppm	Surface Mount	0.126 in	2.5 mm	3.2 mm	0.098 in	Crystal	XO (Standard)	25 MHz	4-SMD No Lead	3.3 V	1.8 V			Enable/Disable	-40 °C	105 ░C	CMOS	6.8 mA	1.2 mm	0.047 in
EPSON SG-8018CB 24.5760M-TJHPA3	3.5 mA	50 ppm	Surface Mount	0.197 in	3.2 mm	5 mm	0.126 "	Crystal	XO (Standard)	24.576 MHz	4-SMD No Lead	3.3 V	1.8 V	1.3 mm	0.051 in	Enable/Disable	-40 °C	105 ░C	CMOS	6.8 mA
EPSON SG-8018CA 100.0000M-TJHSA3	1.1 µA	50 ppm	Surface Mount	0.276 "	5 mm	7 mm	0.197 "	Crystal	XO (Standard)	100 MHz	4-SMD No Lead	3.3 V	1.8 V			Standby (Power Down)	-40 °C	105 ░C	CMOS	6.8 mA	1.4 mm	0.055 in
EPSON SG-8018CE 33.0000M-TJHSA3	1.1 µA	50 ppm	Surface Mount	0.126 in	2.5 mm	3.2 mm	0.098 in	Crystal	XO (Standard)	33 MHz	4-SMD No Lead	3.3 V	1.8 V			Standby (Power Down)	-40 °C	105 ░C	CMOS	6.8 mA	1.2 mm	0.047 in
EPSON SG-8018CA 16.3840M-TJHPA3	3.5 mA	50 ppm	Surface Mount	0.276 "	5 mm	7 mm	0.197 "	Crystal	XO (Standard)	16.384 MHz	4-SMD No Lead	3.3 V	1.8 V			Enable/Disable	-40 °C	105 ░C	CMOS	6.8 mA	1.4 mm	0.055 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	250	$ 1.71

Description

General part information

SG-8018 Series

125 MHz XO (Standard) CMOS Oscillator 1.8V ~ 3.3V Enable/Disable 4-SMD, No Lead
