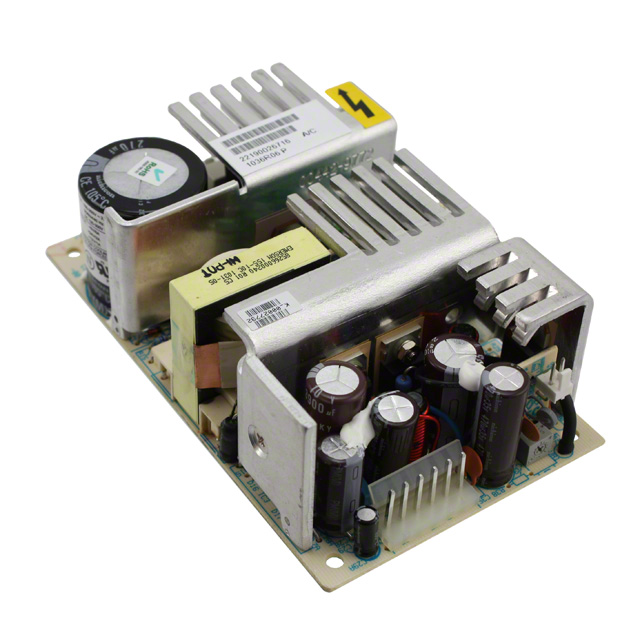

LPT63-M

Obsolete

ARTESYN / Advanced Energy

AC/DC CONVERTER 5V +/-15V 60W

Search across all available documentation for this part.

Obsolete

ARTESYN / Advanced Energy

AC/DC CONVERTER 5V +/-15V 60W

Technical Specifications

Parameters and characteristics for this part

Specification	LPT63-M

Applications	Medical
Approval Agency	CE
Current - Output 1	7 A
Current - Output 2	2.8 A
Current - Output 3	700 mA
Efficiency	70 %
Features	Remote Sense, Universal Input, Adjustable Output, DC Input Capable
Minimum Load Required	True
Mounting Type	Chassis Mount
Number of Outputs	3
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Power (Watts)	80 W
Power (Watts)	60 W
Size / Dimension [x]	5 in
Size / Dimension [x]	127 mm
Size / Dimension [y]	3 "
Size / Dimension [y]	76.2 mm
Size / Dimension [z]	42.9 mm
Size / Dimension [z]	1.69 in
Type	Open Frame
Voltage - Output 1	5 V
Voltage - Output 2	15 V
Voltage - Output 3	-15 V

Part	Number of Outputs	Mounting Type	Features	Approval Agency	Current - Output 2	Voltage - Output 2	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 3	Efficiency	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Type	Minimum Load Required	Current - Output 3	Current - Output 1	Voltage - Output 1	Applications	Power (Watts)	Power (Watts)
ARTESYN / Advanced Energy LPT63-M	3	Chassis Mount	Adjustable Output DC Input Capable Remote Sense Universal Input	CE	2.8 A	15 V	70 °C	0 °C	-15 V	70 %	5 in	127 mm	3 "	76.2 mm	42.9 mm	1.69 in	Open Frame		700 mA	7 A	5 V	Medical	80 W	60 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Open Frame AC DC Converters 3 Output 5V 15V -15V 85 ~ 264 VAC Input
