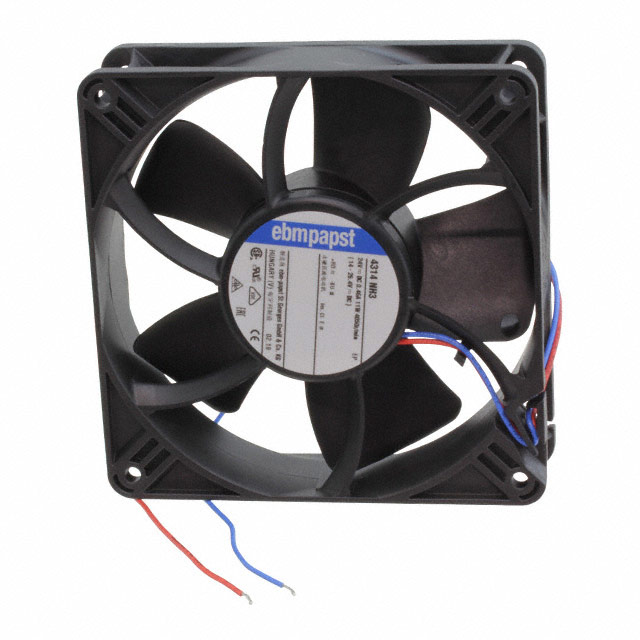

4314NH3

Active

ebm-papst Inc.

FAN AXIAL 119X32MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 4300N Series

4314NH3

Active

ebm-papst Inc.

FAN AXIAL 119X32MM 24VDC WIRE

Deep-Dive with AI

DocumentsDatasheet 4300N Series

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	4314NH3

Air Flow	167 CFM
Air Flow	4.68 m³/min
Bearing Type	Ball
Fan Type	Tubeaxial
Lifetime @ Temp.	45000 Hrs
Material - Blade	Polyamide (PA), Nylon, Fiberglass Reinforced
Material - Frame	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Noise	55 dB
Operating Temperature [Max]	75 ░C
Operating Temperature [Max]	75 °C
Operating Temperature [Min]	-20 C
Operating Temperature [Min]	-20 °C
Power (Watts)	11 W
RPM	4050 RPM
Size / Dimension [x]	119 mm
Size / Dimension [y]	119 mm
Termination	2 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	26.4 VDC
Voltage Range [Min]	14 VDC
Weight	0.553 lb
Weight	250.84 g
Width [y]	32 mm

4314N Series

Part	Width [y]	Size / Dimension [y]	Size / Dimension [x]	RPM	Bearing Type	Voltage Range [Min]	Voltage Range [Max]	Lifetime @ Temp.	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Fan Type	Material - Frame	Power (Watts)	Weight	Weight	Voltage - Rated	Material - Blade	Termination	Noise	Air Flow	Air Flow	Air Flow	Air Flow	Approval Agency
ebm-papst Inc. 4314NN	32 mm	119 mm	119 mm	2700 RPM	Ball	12 VDC	28 VDC	72500 Hrs	-20 C	-20 °C	75 ░C	75 °C	Tubeaxial	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	4.1 W	0.553 lb	250.84 g	24 VDC	Fiberglass Reinforced Nylon Polyamide (PA)	2 Wire Leads	43 dB	112 CFM	3.14 m³/min
ebm-papst Inc. 4314NHH	32 mm	119 mm	119 mm	3600 RPM	Ball	12 VDC	28 VDC	57500 Hrs	-20 C	-20 °C	70 °C	70 °C	Tubeaxial	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	6 W	0.507 lb	229.97 g	24 VDC	Fiberglass Reinforced Nylon Polyamide (PA)	2 Wire Leads	49 dB	3.26 m³/min		116.5 CFM	116.5 CFM	CE CSA UL VDE
ebm-papst Inc. 4314NM	32 mm	119 mm	119 mm	2100 RPM	Ball	12 VDC	28 VDC	85000 Hrs	-20 C	-20 °C	75 ░C	75 °C	Tubeaxial	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	2.4 W	0.553 lb	250.84 g	24 VDC	Fiberglass Reinforced Nylon Polyamide (PA)	2 Wire Leads	36 dB	2.47 m³/min		88.2 CFM
ebm-papst Inc. 4314NH3	32 mm	119 mm	119 mm	4050 RPM	Ball	14 VDC	26.4 VDC	45000 Hrs	-20 C	-20 °C	75 ░C	75 °C	Tubeaxial	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	11 W	0.553 lb	250.84 g	24 VDC	Fiberglass Reinforced Nylon Polyamide (PA)	2 Wire Leads	55 dB	4.68 m³/min		167 CFM
ebm-papst Inc. 4314NL	32 mm	119 mm	119 mm	1450 RPM	Ball	12 VDC	28 VDC	95000 Hrs	-20 C	-20 °C	75 ░C	75 °C	Tubeaxial	Polybutylene Terephthalate (PBT) Fiberglass Reinforced		0.553 lb	250.84 g	24 VDC	Fiberglass Reinforced Nylon Polyamide (PA)	2 Wire Leads	25 dB(A)	1.64 m³/min		58.8 CFM		CE CSA UL VDE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 50.76
		10	$ 46.36
		25	$ 44.60
		50	$ 41.66
		100	$ 38.44
		250	$ 37.85

Description

General part information

4314N Series

Fan Tubeaxial 24VDC Square - 119mm L x 119mm H Ball 167.0 CFM (4.68m³/min) 2 Wire Leads
