1010M100

Active

Jacob GmbH

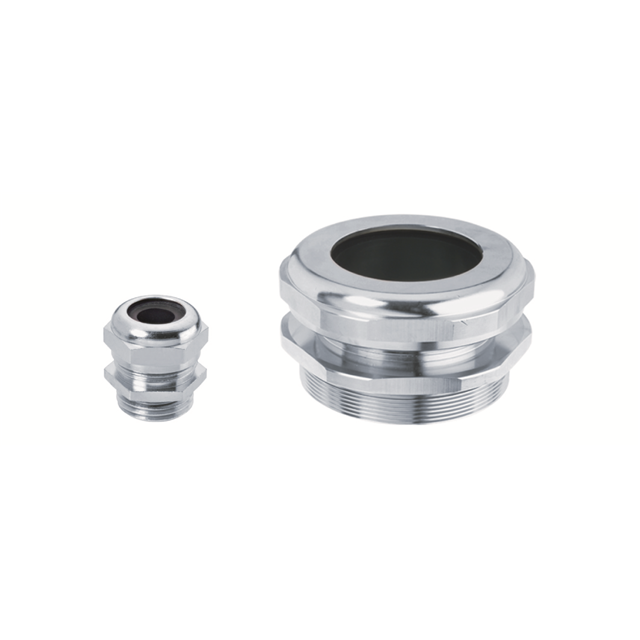

CABLE GLAND 68-75MM M100 BRASS

Search across all available documentation for this part.

Active

Jacob GmbH

CABLE GLAND 68-75MM M100 BRASS

Technical Specifications

Parameters and characteristics for this part

Specification	1010M100

Color	Silver
Ingress Protection	IP65 - Dust Tight, Water Resistant
Material	Brass, Nickel Plated
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-30 ░C
Outside Cable Diameter (Max) [Max] [diameter]	75 mm
Outside Cable Diameter (Max) [Max] [diameter]	2.953 in
Outside Cable Diameter (Min) [Min]	68 mm
Outside Cable Diameter (Min) [Min]	2.677 in
Thread Length	22 mm
Thread Length	0.866 in
Thread Size	M100x3
Type	Cable Gland

Part	Operating Temperature [Max]	Operating Temperature [Min]	Type	Thread Length	Thread Length	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Material	Thread Size	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Ingress Protection	Color
Jacob GmbH 1010M100	100 °C	-30 ░C	Cable Gland	22 mm	0.866 in	68 mm	2.677 in	Brass Nickel Plated	M100x3	75 mm	2.953 in	IP65 - Dust Tight Water Resistant	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 252.22

General part information

Cable Gland Brass, Nickel Plated M100x3 Silver
