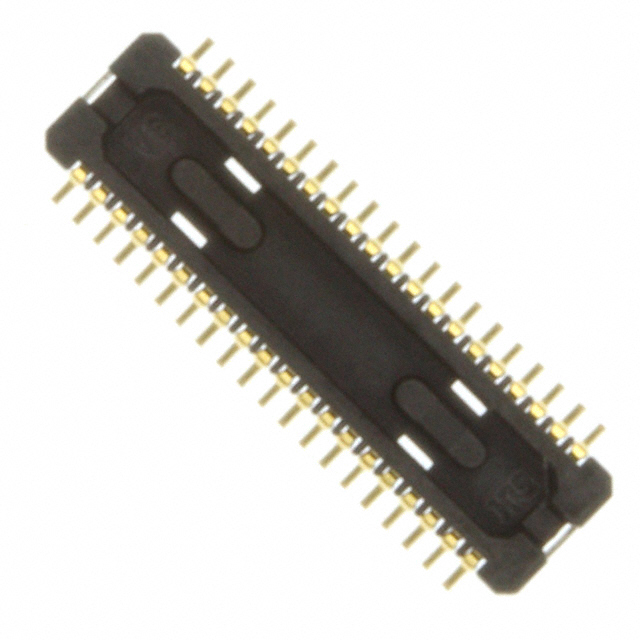

DF30RC-40DP-0.4V(82)
ActiveHirose Electric USA, Inc.
CONN HDR 40POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DF30RC-40DP-0.4V(82)
ActiveHirose Electric USA, Inc.
CONN HDR 40POS SMD GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DF30RC-40DP-0.4V(82) |
|---|---|
| Connector Type | Header, Center Strip Contacts |
| Contact Finish | Gold |
| Height Above Board [z] | 0.8 mm |
| Height Above Board [z] | 0.031 in |
| Mated Stacking Heights | 0.9 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Pitch [x] | 0.016 in |
| Pitch [x] | 0.4 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.11 | |
| 10 | $ 0.94 | |||
| 25 | $ 0.90 | |||
| 50 | $ 0.88 | |||
| 100 | $ 0.84 | |||
| 250 | $ 0.77 | |||
| 500 | $ 0.69 | |||
| Digi-Reel® | 1 | $ 1.11 | ||
| 10 | $ 0.94 | |||
| 25 | $ 0.90 | |||
| 50 | $ 0.88 | |||
| 100 | $ 0.84 | |||
| 250 | $ 0.77 | |||
| 500 | $ 0.69 | |||
| Tape & Reel (TR) | 1000 | $ 0.61 | ||
| 2000 | $ 0.58 | |||
| 3000 | $ 0.56 | |||
| 5000 | $ 0.54 | |||
| 10000 | $ 0.51 | |||
Description
General part information
DF30RC Series
40 Position Connector Header, Center Strip Contacts Surface Mount Gold
