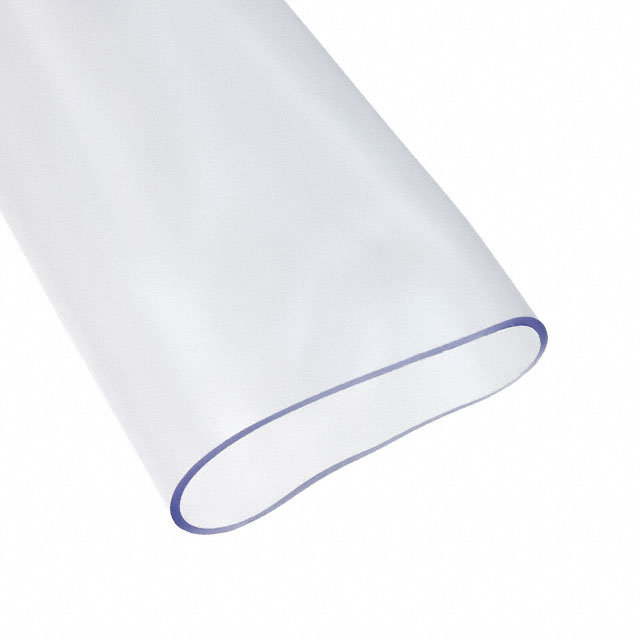

P1057/8 CL007
ActiveALPHA WIRE
TUBING 0.875" ID PVC 50' CLEAR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsFIT Wire Management Catalog
P1057/8 CL007
ActiveALPHA WIRE
TUBING 0.875" ID PVC 50' CLEAR
Deep-Dive with AI
DocumentsFIT Wire Management Catalog
Technical Specifications
Parameters and characteristics for this part
| Specification | P1057/8 CL007 |
|---|---|
| Abrasion Protection | Abrasion Resistant |
| Color | Clear |
| Diameter - Inside [diameter] | 22.22 mm |
| Diameter - Inside [diameter] | 0.875 in |
| Diameter - Outside [diameter] | 24.92 mm |
| Diameter - Outside [diameter] | 0.981 in |
| Environment Protection | UV Resistant, Corrosion Resistant |
| Heat Protection | Heat Resistant |
| Length | 15.24 m |
| Length [x] | 50 ft |
| Liquid Protection | Oil Resistant |
| Material | Poly-Vinyl Chloride (PVC) |
| Material Flammability Rating | UL 224 VW-1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -20 C |
| Type | Solid Tubing |
| Type Attributes | Smooth |
| Wall Thickness [custom] | 0.89 mm |
| Wall Thickness [custom] | 0.035 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 117.53 | |
| 5 | $ 110.18 | |||
| 10 | $ 102.84 | |||
| 25 | $ 97.70 | |||
| 50 | $ 95.49 | |||
| 100 | $ 93.29 | |||
Description
General part information
P1057/8 Series
Clear Poly-Vinyl Chloride (PVC) Smooth Solid Tubing 0.875" (22.22mm) 50.00' (15.24m)
