704.062.618

Active

EAO

CONFIG SW BODY PUSHBUTTON ILLUM

Search across all available documentation for this part.

Active

EAO

CONFIG SW BODY PUSHBUTTON ILLUM

Technical Specifications

Parameters and characteristics for this part

Specification	704.062.618

(Select First, Then Apply Filters) Compatible Series	04, EAO
Actuator Type	Pushbutton, Round
Illumination	Illuminated - Blue
Panel Cutout Dimensions	30.5 mm
Requires	Illumination Source, Contact Block(s)
Type	Maintained

Part	Actuator Type	Type	(Select First, Then Apply Filters) Compatible Series	Requires	Panel Cutout Dimensions	Illumination
EAO 704.062.618	Pushbutton Round	Maintained	04 EAO	Contact Block(s) Illumination Source	30.5 mm	Illuminated - Blue
EAO 704.062.2	Pushbutton Round	Maintained	04 EAO	Contact Block(s) Illumination Source	22.3 mm
EAO 704.062.418	Pushbutton Round	Maintained	04 EAO	Contact Block(s) Illumination Source	30.5 mm	Illuminated - Yellow
EAO 704.062.5	Pushbutton Round	Maintained	04 EAO	Contact Block(s) Illumination Source	22.3 mm	Illuminated - Green
EAO 704.062.4	Pushbutton Round	Maintained	04 EAO	Contact Block(s) Illumination Source	22.3 mm	Illuminated - Yellow
EAO 704.062.518	Pushbutton Round	Maintained	04 EAO	Contact Block(s) Illumination Source	30.5 mm	Illuminated - Green
EAO 704.062.218	Pushbutton Round	Maintained	04 EAO	Contact Block(s) Illumination Source	30.5 mm
EAO 704.062.6	Pushbutton Round	Maintained	04 EAO	Contact Block(s) Illumination Source	22.3 mm	Illuminated - Blue

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

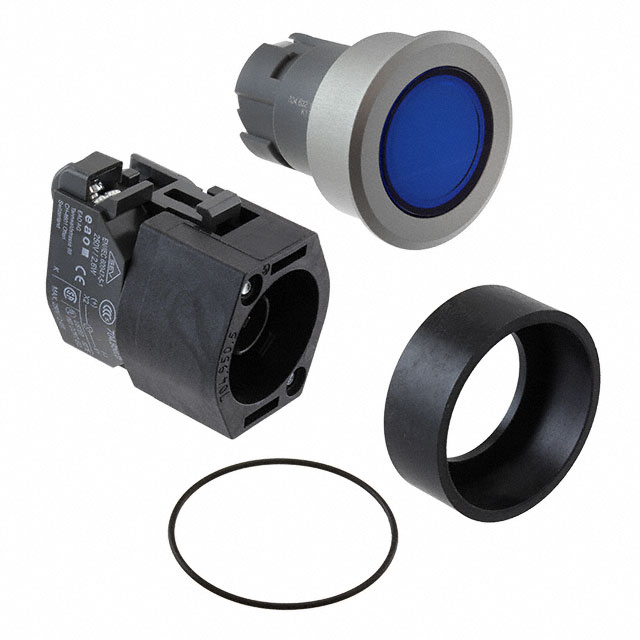

Configurable Switch Body Pushbutton, Round Illuminated - Blue
