2N2907A

Obsolete

STMicroelectronics

TRANS PNP 60V 0.6A TO18

Search across all available documentation for this part.

Obsolete

STMicroelectronics

TRANS PNP 60V 0.6A TO18

Technical Specifications

Parameters and characteristics for this part

Specification	2N2907A

Current - Collector (Ic) (Max) [Max]	600 mA
Current - Collector Cutoff (Max) [Max]	0.01 µA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	100
Frequency - Transition	200 MHz
Mounting Type	Through Hole
Operating Temperature	175 °C

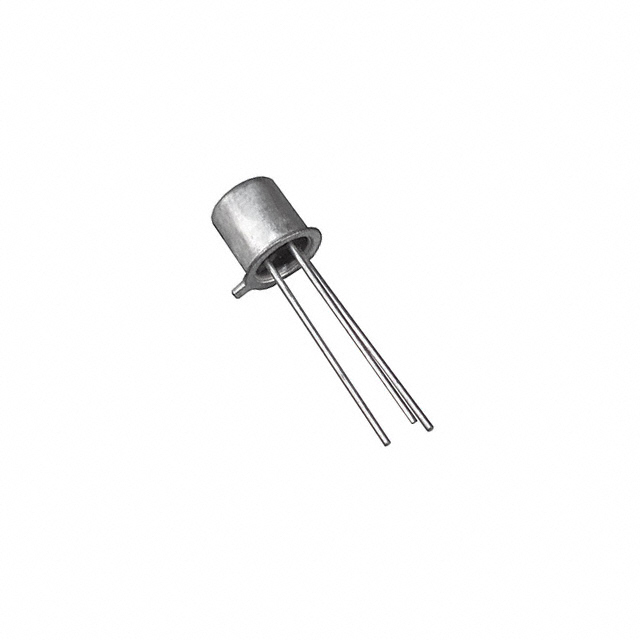

Package / Case	TO-18-3 Metal Can, TO-206AA
Power - Max [Max]	400 mW
Supplier Device Package	TO-18
Transistor Type	PNP
Vce Saturation (Max) @ Ib, Ic	1.6 V
Voltage - Collector Emitter Breakdown (Max)	60 V

Part	Frequency - Transition	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Voltage - Collector Emitter Breakdown (Max)	Mounting Type	Power - Max [Max]	Current - Collector Cutoff (Max) [Max]	Supplier Device Package	Package / Case	Vce Saturation (Max) @ Ib, Ic	Current - Collector (Ic) (Max) [Max]	Transistor Type	Operating Temperature
STMicroelectronics 2N2907A	200 MHz	100	60 V	Through Hole	400 mW	0.01 µA	TO-18	TO-18-3 Metal Can TO-206AA	1.6 V	600 mA	PNP	175 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bipolar (BJT) Transistor PNP 60 V 600 mA 200MHz 400 mW Through Hole TO-18
