UESD5.0ST5G

Obsolete

ON Semiconductor

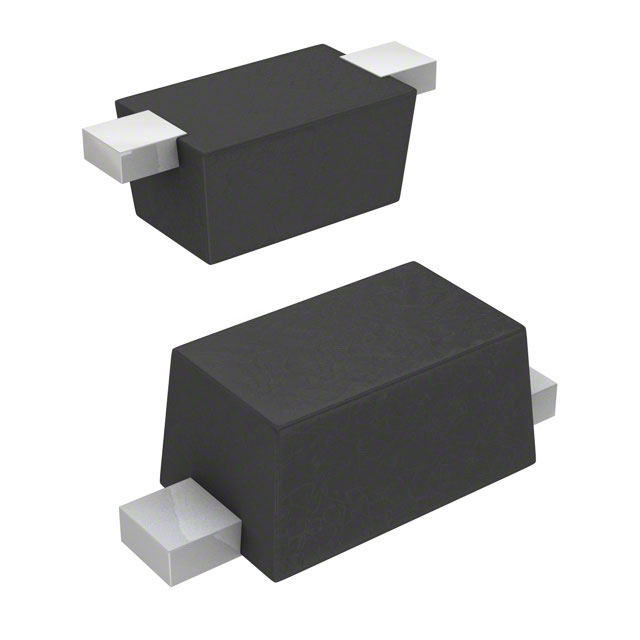

TVS DIODE 5VWM 13.3VC SOD723

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Package Drawing-509AA-SOD−723, 2−LEAD, 1.00x0.60x0.52

UESD5.0ST5G

Obsolete

ON Semiconductor

TVS DIODE 5VWM 13.3VC SOD723

Deep-Dive with AI

DocumentsDatasheet Package Drawing-509AA-SOD−723, 2−LEAD, 1.00x0.60x0.52

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UESD5.0ST5G

Applications	General Purpose
Capacitance @ Frequency	65 pF
Current - Peak Pulse (10/1000µs)	8.8 A
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	SOD-723
Power - Peak Pulse	117 W
Power Line Protection	False
Supplier Device Package	SOD-723
Type	Zener
Unidirectional Channels [custom]	1
Voltage - Clamping (Max) @ Ipp [Max]	13.3 V
Voltage - Reverse Standoff (Typ)	5 V

UESD5.0S Series

ESD Protection Diode

Part	Applications	Capacitance @ Frequency	Type	Voltage - Clamping (Max) @ Ipp [Max]	Power - Peak Pulse	Operating Temperature [Min]	Operating Temperature [Max]	Power Line Protection	Voltage - Reverse Standoff (Typ)	Unidirectional Channels [custom]	Mounting Type	Current - Peak Pulse (10/1000µs)	Supplier Device Package	Package / Case
ON Semiconductor UESD5.0ST5G	General Purpose	65 pF	Zener	13.3 V	117 W	-55 °C	150 °C		5 V	1	Surface Mount	8.8 A	SOD-723	SOD-723

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

UESD5.0S Series

The uESD Series is designed to protect voltage sensitive components from ESD. Excellent clamping capability, low leakage, and fast response time provide best in class protection on designs that are exposed to ESD. Because of its small size, it is suited for use in cellular phones, MP3 players, digital cameras and many other portable applications where board space comes at premium.
