2SH-H-03-TR

Active

Adam Tech

CONN HDR T-H R/A 3POS 2.00MM

Search across all available documentation for this part.

Active

Adam Tech

CONN HDR T-H R/A 3POS 2.00MM

Technical Specifications

Parameters and characteristics for this part

Specification	2SH-H-03-TR

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post [x]	0.134 in
Contact Length - Post [x]	3.4 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Locking Ramp
Features	Board Guide
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Kinked Pin, Solder
Voltage Rating	100 VAC

Part	Contact Shape	Contact Type	Contact Material	Material Flammability Rating	Shrouding	Connector Type	Number of Rows	Pitch - Mating [x]	Pitch - Mating [x]	Style	Contact Finish - Post	Termination	Fastening Type	Voltage Rating	Contact Length - Post [x]	Contact Length - Post [x]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Features	Number of Positions Loaded
Adam Tech 2SH-H-03-TR	Square	Male Pin	Brass	UL94 V-0	Shrouded - 4 Wall	Header	1	0.079 in	2 mm	Board to Board Cable	Tin	Kinked Pin Solder	Locking Ramp	100 VAC	0.134 in	3.4 mm	Through Hole Right Angle	-25 °C	85 °C	Board Guide	All

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

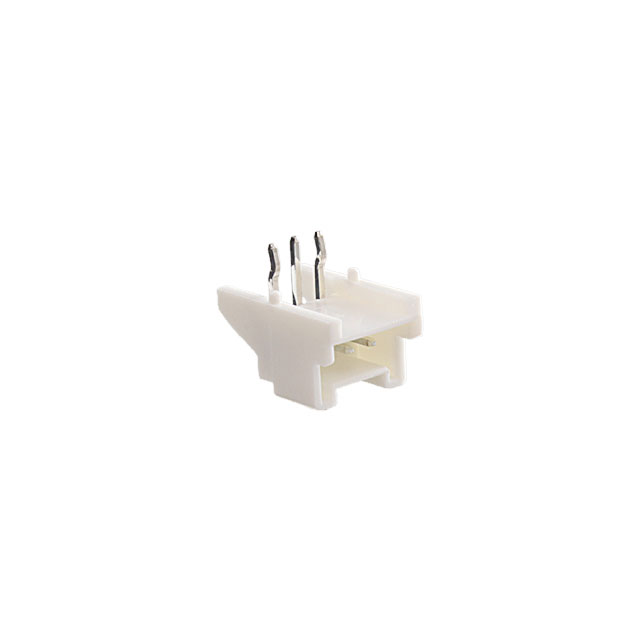

Connector Header Through Hole, Right Angle 3 position 0.079" (2.00mm)
