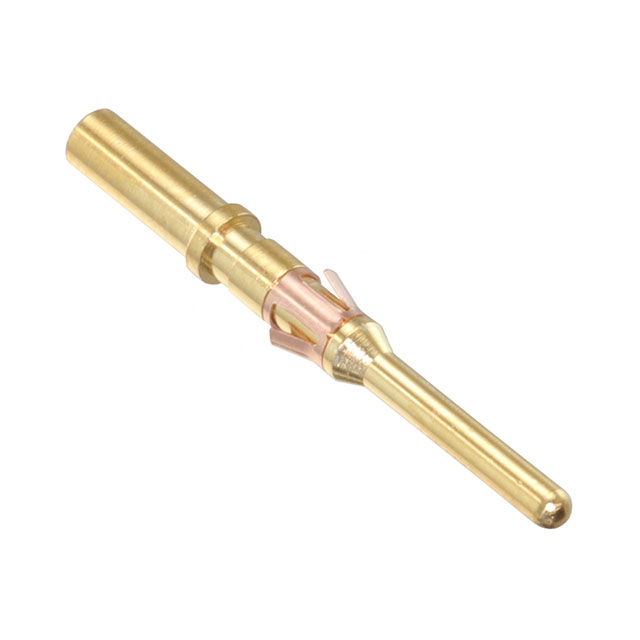

RM16M23J

Active

Souriau-Sunbank by Eaton

CONN PIN 16-20AWG GOLD CRIMP

Search across all available documentation for this part.

Active

Souriau-Sunbank by Eaton

CONN PIN 16-20AWG GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Part	Contact Material	Contact Termination	Contact Finish Thickness	Contact Finish Thickness	Type	Contact Finish	Wire Gauge [Min]	Wire Gauge [Max]	Pin or Socket	Contact Finish Thickness	Wire Gauge
Souriau-Sunbank by Eaton RM16M-23T	Copper Alloy	Crimp	120 µin	3.05 µm	Machined	Tin	16 AWG	20 AWG	Pin
Souriau-Sunbank by Eaton RM16M23N	Copper Alloy	Crimp			Machined	Gold	16 AWG	20 AWG	Pin
Souriau-Sunbank by Eaton RM16M25K	Copper Alloy	Crimp	16 µin	0.41 µm	Machined	Gold	16 AWG	20 AWG	Pin
Souriau-Sunbank by Eaton RM16M23J	Copper Alloy	Crimp			Machined	Gold	16 AWG	20 AWG	Pin	Flash
Souriau-Sunbank by Eaton RM16M23D28	Copper Alloy	Crimp	29.5 µin	0.75 µm	Machined	Gold	16 AWG	20 AWG	Pin
Souriau-Sunbank by Eaton RM16M31D28	Copper Alloy	Crimp	29.5 µin	0.75 µm	Machined	Gold			Pin		16 AWG
Souriau-Sunbank by Eaton RM16M23D281000	Copper Alloy	Crimp	29.5 µin	0.75 µm	Machined	Gold	16 AWG	20 AWG	Pin
Souriau-Sunbank by Eaton RM16M23K	Copper Alloy	Crimp	16 µin	0.41 µm	Machined	Gold	16 AWG	20 AWG	Pin
Souriau-Sunbank by Eaton RM16M23GE1K	Copper Alloy	Crimp	16 µin	0.41 µm	Machined	Gold	16 AWG	20 AWG	Pin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pin Contact Gold Crimp 16-20 AWG Machined

Technical documentation and resources

No documents available
