09365061301

Active

HARTING Technology Group

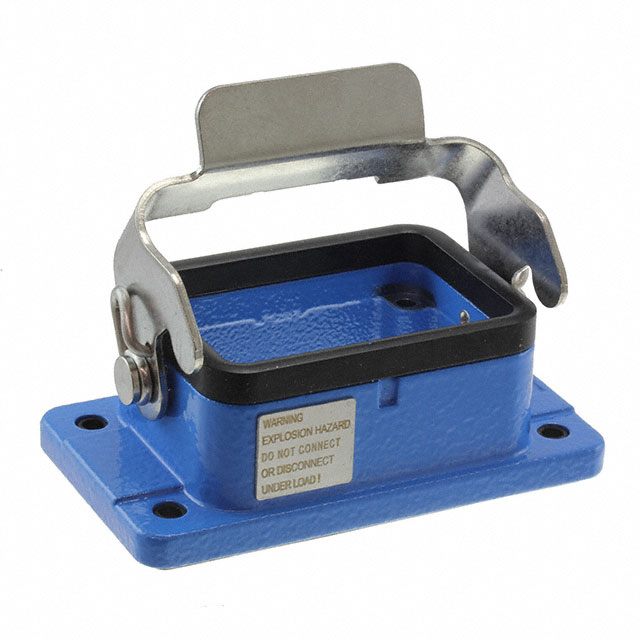

HEAVY DUTY CONNECTOR, BASE, BULKHEAD MOUNT, ZINC BODY, 1 LEVER, 6B

Search across all available documentation for this part.

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, BASE, BULKHEAD MOUNT, ZINC BODY, 1 LEVER, 6B

Technical Specifications

Parameters and characteristics for this part

Specification	09365061301

Connector Type	Base - Panel Mount
Housing Color	Blue
Housing Finish	Powder Coated
Housing Material	Zinc, Die Cast
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-20 C
Size	6B
Size / Dimension [x]	85 mm
Size / Dimension [x]	3.346 in
Size / Dimension [y]	1.906 in
Size / Dimension [y]	48.4 mm
Size / Dimension [z]	1.232 in
Size / Dimension [z]	31.3 mm
Style	Bottom Entry

Part	Style	Housing Finish	Connector Type	Housing Color	Lock Location	Housing Material	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Ingress Protection	Size
HARTING Technology Group 09365061301	Bottom Entry	Powder Coated	Base - Panel Mount	Blue	Locking Clip (1) on Base Bottom	Zinc Die Cast	-20 C	40 °C	85 mm	1.906 in	1.232 in	3.346 in	48.4 mm	31.3 mm	IP65 - Dust Tight Water Resistant	6B

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Base - Panel Mount Connector Bottom Entry 6B IP65 - Dust Tight, Water Resistant
