OAB318-22-1

Active

Orion Fans

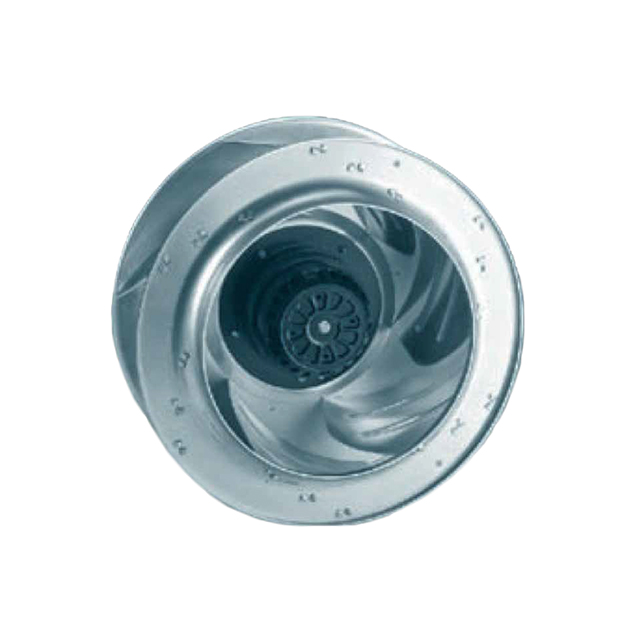

FAN IMP MTRZD 318X154 230V W/CAP

Search across all available documentation for this part.

Active

Orion Fans

FAN IMP MTRZD 318X154 230V W/CAP

Technical Specifications

Parameters and characteristics for this part

Specification	OAB318-22-1

Air Flow	32.62 mł/min
Air Flow	1165 CFM
Approval Agency	cURus, TUV
Bearing Type	Ball
Current Rating (Amps)	0.68 A
Fan Type	Motorized Impellers
Features	Thermal Overload Protector (TOP), Permanent Split Capacitor Motor
Lifetime @ Temp.	60000 Hrs
Material - Blade	Metal
Material - Frame	Aluminum
Noise	66 dB
Operating Temperature [Max]	80 C
Operating Temperature [Max]	80 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	155 W
RPM	1580 RPM
Size / Dimension	Round
Size / Dimension [diameter]	318 mm
Static Pressure	1.6 in H2O
Static Pressure	398.6 Pa
Termination	4 Wire Leads
Voltage - Rated	230 VAC
Voltage Range [Max]	240 VAC
Voltage Range [Min]	210 VAC
Weight	4 kg
Weight	8.8 lbs
Width [y]	154.5 mm

Part	Static Pressure	Static Pressure	Noise	Air Flow	Air Flow	Bearing Type	Termination	Voltage - Rated	Features	Lifetime @ Temp.	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Material - Blade	RPM	Weight	Weight	Material - Frame	Power (Watts)	Approval Agency	Voltage Range [Min]	Voltage Range [Max]	Fan Type	Current Rating (Amps)	Size / Dimension [diameter]	Size / Dimension	Width [y]
Orion Fans OAB318-22-1	1.6 in H2O	398.6 Pa	66 dB	32.62 mł/min	1165 CFM	Ball	4 Wire Leads	230 VAC	Permanent Split Capacitor Motor Thermal Overload Protector (TOP)	60000 Hrs	80 C	80 °C	-20 °C	-20 C	Metal	1580 RPM	4 kg	8.8 lbs	Aluminum	155 W	cURus TUV	210 VAC	240 VAC	Motorized Impellers	0.68 A	318 mm	Round	154.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	2	$ 153.19

General part information

Fan Motorized Impellers 230VAC Round - 318mm Dia Ball 1165.0 CFM (32.62mł/min) 4 Wire Leads
