Q-3303J0001012I

Active

Amphenol Custom Cable

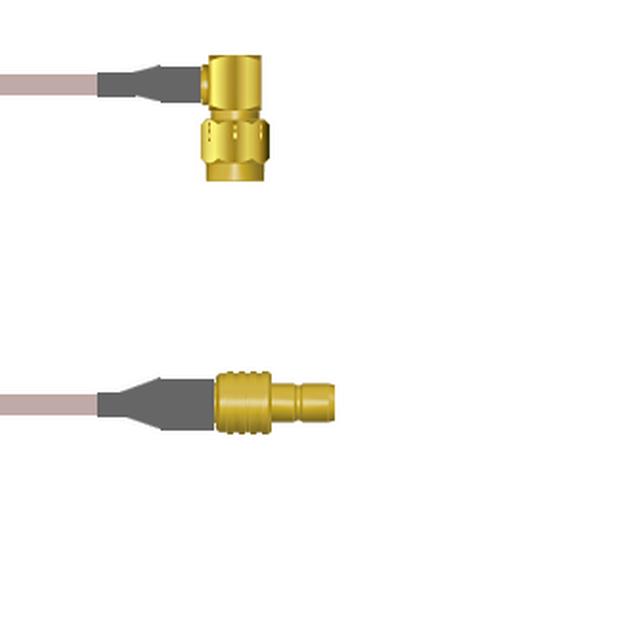

CBL ASSY SMA-SMB PLUG-JACK 12"

Deep-Dive with AI

Search across all available documentation for this part.

Q-3303J0001012I

Active

Amphenol Custom Cable

CBL ASSY SMA-SMB PLUG-JACK 12"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-3303J0001012I

1st Connector	SMA Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	SMB Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	RG-178
Color	Copper
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	3 GHz
Length	12 "
Length	304.8 mm
Overall Impedance	50 Ohms
Style	SMA to SMB

Q-3303J0 Series

Part	Connector Impedance	Cable Impedance	1st Contact Gender	Features	Frequency - Max [Max]	1st Connector	1st Connector Mounting Type	Style	2nd Connector Mounting Type	2nd Contact Gender	Color	Overall Impedance	Cable Type	Length	Length	2nd Connector	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-3303J0001006I	50 Ohms	50 Ohms	Male	Shielded	3 GHz	Right Angle SMA Plug	Free Hanging (In-Line)	SMA to SMB	Free Hanging (In-Line)	Male	Copper	50 Ohms	RG-178	152.4 mm	6 in	SMB Jack
Amphenol Custom Cable Q-3303J0001003M	50 Ohms	50 Ohms	Male	Shielded	3 GHz	Right Angle SMA Plug	Free Hanging (In-Line)	SMA to SMB	Free Hanging (In-Line)	Male	Copper	50 Ohms	RG-178	3 m	118.1 in	SMB Jack	9.8 '
Amphenol Custom Cable Q-3303J0001012I	50 Ohms	50 Ohms	Male	Shielded	3 GHz	Right Angle SMA Plug	Free Hanging (In-Line)	SMA to SMB	Free Hanging (In-Line)	Male	Copper	50 Ohms	RG-178	304.8 mm	12 "	SMB Jack
Amphenol Custom Cable Q-3303J0001001M	50 Ohms	50 Ohms	Male	Shielded	3 GHz	Right Angle SMA Plug	Free Hanging (In-Line)	SMA to SMB	Free Hanging (In-Line)	Male	Copper	50 Ohms	RG-178	1 m	39.4 in	SMB Jack	3.3 ft
Amphenol Custom Cable Q-3303J0001.25M	50 Ohms	50 Ohms	Male	Shielded	3 GHz	Right Angle SMA Plug	Free Hanging (In-Line)	SMA to SMB	Free Hanging (In-Line)	Male	Copper	50 Ohms	RG-178			SMB Jack		9.843 "	250 mm
Amphenol Custom Cable Q-3303J0001.75M	50 Ohms	50 Ohms	Male	Shielded	3 GHz	Right Angle SMA Plug	Free Hanging (In-Line)	SMA to SMB	Free Hanging (In-Line)	Male	Copper	50 Ohms	RG-178	750 mm	29.53 "	SMB Jack
Amphenol Custom Cable Q-3303J00010.5M	50 Ohms	50 Ohms	Male	Shielded	3 GHz	Right Angle SMA Plug	Free Hanging (In-Line)	SMA to SMB	Free Hanging (In-Line)	Male	Copper	50 Ohms	RG-178	50 cm	19.69 "	SMB Jack
Amphenol Custom Cable Q-3303J0001002M	50 Ohms	50 Ohms	Male	Shielded	3 GHz	Right Angle SMA Plug	Free Hanging (In-Line)	SMA to SMB	Free Hanging (In-Line)	Male	Copper	50 Ohms	RG-178	2 m	78.7 in	SMB Jack	6.6 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 138.28
		25	$ 135.59
		50	$ 132.91
		100	$ 130.23
		250	$ 127.55

Description

General part information

Q-3303J0 Series

Cable Assembly Coaxial SMA to SMB RG-178 12.00" (304.80mm)

Documents

Technical documentation and resources

No documents available
