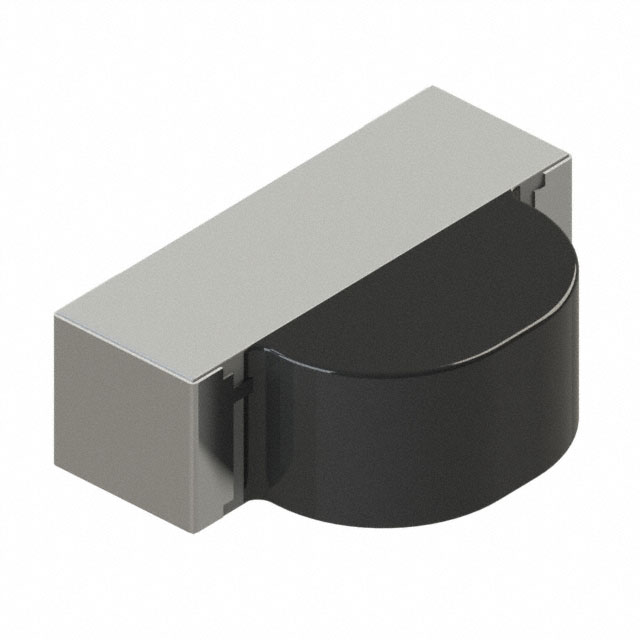

IN-S32HSNPD
ActiveInolux
SENSOR PHOTODIODE 940NM 2SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
IN-S32HSNPD
ActiveInolux
SENSOR PHOTODIODE 940NM 2SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | IN-S32HSNPD |
|---|---|
| Color - Enhanced | Red, Infrared (NIR) |
| Current - Dark (Typ) [Max] | 10 nA |
| Mounting Type | Surface Mount, Right Angle |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 2-SMD, No Lead |
| Response Time | 6 µs |
| Spectral Range [Max] | 1100 nm |
| Spectral Range [Min] | 700 nm |
| Voltage - DC Reverse (Vr) (Max) [Max] | 32 V |
| Wavelength | 940 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.47 | |
| 10 | $ 0.31 | |||
| 100 | $ 0.21 | |||
| 500 | $ 0.14 | |||
| 1000 | $ 0.12 | |||
| Digi-Reel® | 1 | $ 0.47 | ||
| 10 | $ 0.31 | |||
| 100 | $ 0.21 | |||
| 500 | $ 0.14 | |||
| 1000 | $ 0.12 | |||
| Tape & Reel (TR) | 3000 | $ 0.11 | ||
| 6000 | $ 0.10 | |||
| 15000 | $ 0.09 | |||
| 30000 | $ 0.09 | |||
| 75000 | $ 0.08 | |||
Description
General part information
IN-S32 Series
Photodiode 940nm 6µs 2-SMD, No Lead
