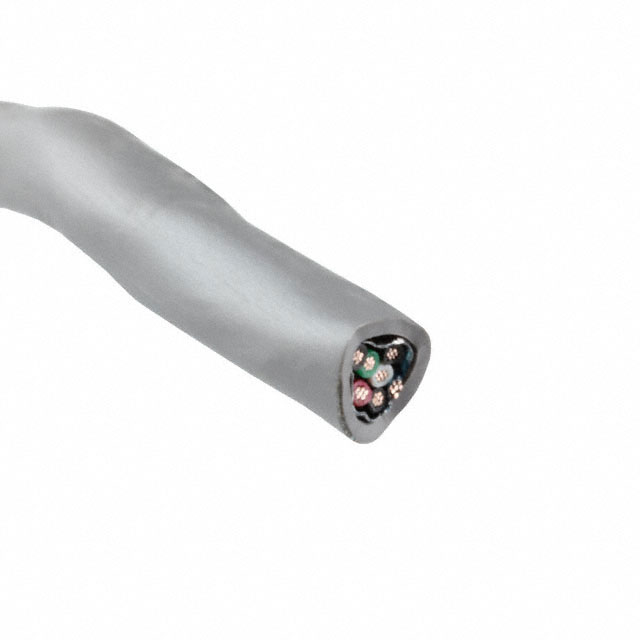

2213C SL001

Active

ALPHA WIRE

MULTI-PAIR 6COND 22AWG

Search across all available documentation for this part.

Active

ALPHA WIRE

MULTI-PAIR 6COND 22AWG

Technical Specifications

Parameters and characteristics for this part

Specification	2213C SL001

Cable Type	Multi-Pair
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	6.22 mm
Jacket (Insulation) Diameter [diameter]	0.245 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Slate
Length	1000 ft
Length	304.8 m
Number of Conductors	6
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Control, Communication
Voltage	150 V
Wire Gauge	22 AWG

Part	Jacket (Insulation) Material	Shield Coverage	Usage	Cable Type	Conductor Insulation	Length	Length	Conductor Material	Shield Material	Features	Shield Type	Voltage	Wire Gauge	Number of Conductors	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand [custom]	Conductor Strand [custom]	Jacket Color	Operating Temperature [Min]	Operating Temperature [Max]
ALPHA WIRE 2213C SL001	Poly-Vinyl Chloride (PVC)	100 %	Communication Control	Multi-Pair	Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m	Copper Tinned	Aluminum	Drain Wire	Foil	150 V	22 AWG	6	6.22 mm	0.245 in	7	30 AWG	Slate	-20 C	80 C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 1.33

General part information

6 (3 Pair Twisted) Conductor Multi-Pair Cable Slate 22 AWG Foil 1000.0' (304.8m)
