RCLAMP0564P.TNT

Active

Semtech Corporation

ESD SUPPRESSOR DIODE DIODE ARRAY UNI-DIR 5V 13.5VC 5-PIN SGP T/R

Search across all available documentation for this part.

Active

Semtech Corporation

ESD SUPPRESSOR DIODE DIODE ARRAY UNI-DIR 5V 13.5VC 5-PIN SGP T/R

Technical Specifications

Parameters and characteristics for this part

Specification	RCLAMP0564P.TNT

Applications	HDMI
Capacitance @ Frequency	0.17 pF
Current - Peak Pulse (10/1000µs)	3 A
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	5-UFDFN
Power Line Protection	True

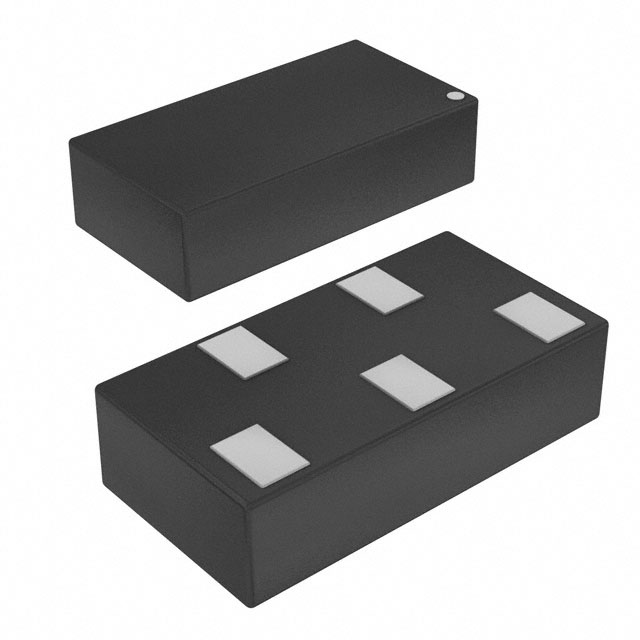

Supplier Device Package	SGP2010N5
Type	Steering
Unidirectional Channels [custom]	4
Voltage - Breakdown (Min) [Min]	6.5 V
Voltage - Clamping (Max) @ Ipp [Max]	4 V
Voltage - Reverse Standoff (Typ)	5 V

Part	Package / Case	Supplier Device Package	Unidirectional Channels [custom]	Applications	Voltage - Clamping (Max) @ Ipp [Max]	Power Line Protection	Voltage - Breakdown (Min) [Min]	Current - Peak Pulse (10/1000µs)	Capacitance @ Frequency	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Type	Voltage - Reverse Standoff (Typ)
Semtech Corporation RCLAMP0564P.TNT	5-UFDFN	SGP2010N5	4	HDMI	4 V		6.5 V	3 A	0.17 pF	-40 °C	85 °C	Surface Mount	Steering	5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4V Clamp 3A (8/20µs) Ipp Tvs Diode Surface Mount SGP2010N5

Technical documentation and resources

No documents available
