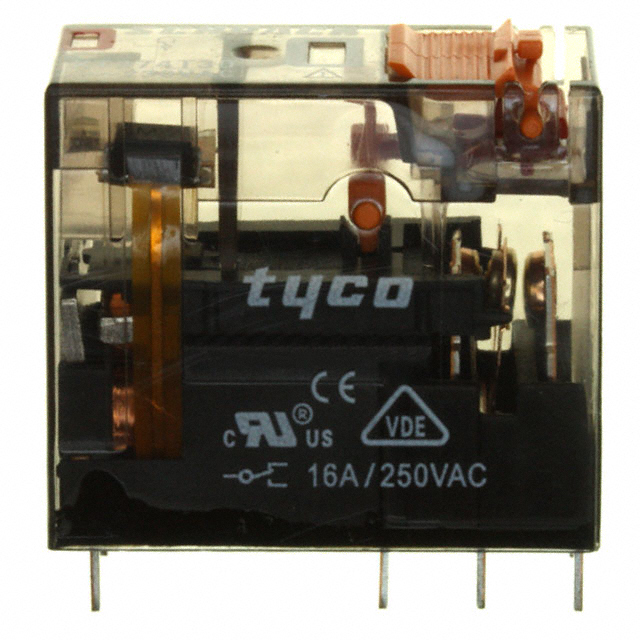

XT374T30

Obsolete

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE SPDT 16A 230V

Search across all available documentation for this part.

Obsolete

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE SPDT 16A 230V

Technical Specifications

Parameters and characteristics for this part

Part	Operate Time	Termination Style	Contact Material	Features	Mounting Type	Release Time	Coil Type	Must Release Voltage	Coil Resistance	Approval Agency	Coil Current	Coil Voltage	Load - Max Switching	Operating Temperature [Min]	Operating Temperature [Max]	Must Operate Voltage	Relay Type	Contact Form	Switching Voltage [Max]	Contact Rating (Current)
TE Connectivity Potter & Brumfield Relays XT374LC4	9 ms	Plug In	Silver Nickel (AgNi)	Diode Lighted Indicator	Socketable	6 ms	Non Latching	2.4 VDC	1440 Ohms	cURus VDE	16.7 mA	24 VDC	6400 VA	-40 °C	70 °C	16.8 VDC	General Purpose	SPDT (1 Form C)	400 VAC	16 A
TE Connectivity Potter & Brumfield Relays XT374S15	9 ms	Plug In	Silver Nickel (AgNi)	Lighted Indicator	Socketable	6 ms	Non Latching	17.3 VAC	8.1 kOhms	cURus VDE	16.7 mA	115 VAC	6400 VA	-40 °C	70 °C	86.3 VAC	General Purpose	SPDT (1 Form C)	400 VAC	16 A
TE Connectivity Potter & Brumfield Relays XT374T30	9 ms	Plug In	Silver Nickel (AgNi)	Lighted Indicator	Socketable	6 ms	Non Latching	34.5 VAC	32500 Ohms	cURus VDE	16.7 mA	230 VAC	6400 VA	-40 °C	70 °C	172.5 VAC	General Purpose	SPDT (1 Form C)	400 VAC	16 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

General Purpose Relay SPDT (1 Form C) 230VAC Coil Socketable
