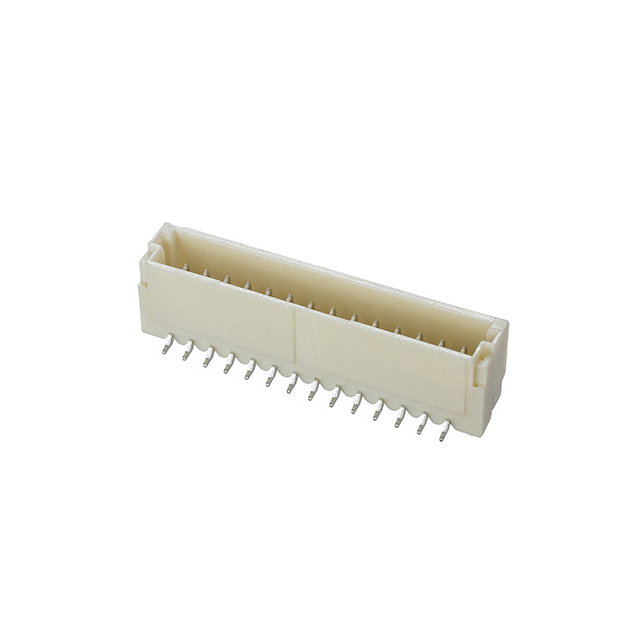

M40-3011346
ObsoleteHarwin Inc.
CONN HEADER SMD 13POS 1MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
M40-3011346
ObsoleteHarwin Inc.
CONN HEADER SMD 13POS 1MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | M40-3011346 |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Material | Phosphor Bronze |
| Contact Shape | Rectangular |
| Contact Type | Male Pin |
| Fastening Type | Detent Lock |
| Features | Pick and Place, Solder Retention |
| Insulation Color | Natural |
| Insulation Height | 4.3 mm |
| Insulation Height | 0.169 " |
| Insulation Material | Polyamide (PA9T), Nylon 9T |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 13 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Pitch - Mating | 0.039 in |
| Pitch - Mating | 1 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 50 V |
M40-301 Series
| Part | Voltage Rating | Pitch - Mating | Pitch - Mating | Contact Shape | Number of Positions | Material Flammability Rating | Termination | Insulation Height | Insulation Height | Mounting Type | Shrouding | Style | Number of Rows | Number of Positions Loaded | Insulation Material | Fastening Type | Contact Material | Features | Contact Type | Insulation Color | Contact Finish - Post | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Mated Stacking Heights |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Harwin Inc. | 50 VAC | 0.039 in | 1 mm | Rectangular | 2 | UL94 V-0 | Solder | 0.171 in | 4.35 mm | Surface Mount | Shrouded - 4 Wall | Board to Board Cable | 1 | All | Liquid Crystal Polymer (LCP) | Detent Lock | Copper Alloy | Pick and Place Solder Retention | Male Pin | Natural | Tin | -25 °C | 85 °C | Header | |
Harwin Inc. | 50 V | 0.039 in | 1 mm | Rectangular | 6 | UL94 V-0 | Solder | 0.169 " | 4.3 mm | Surface Mount | Shrouded - 4 Wall | Board to Cable/Wire | 1 | All | Nylon 9T Polyamide (PA9T) | Detent Lock | Phosphor Bronze | Pick and Place Solder Retention | Male Pin | Natural | Tin | -25 °C | 85 °C | Header | |
Harwin Inc. | 50 VAC | 0.039 in | 1 mm | Rectangular | UL94 V-0 | Solder | 0.171 in | 4.35 mm | Surface Mount | Shrouded - 4 Wall | Board to Board Cable | 1 | All | Liquid Crystal Polymer (LCP) | Detent Lock | Copper Alloy | Pick and Place Solder Retention | Male Pin | Natural | Tin | -25 °C | 85 °C | Header | ||
Harwin Inc. | 50 VAC | 0.039 in | 1 mm | Rectangular | 8 | UL94 V-0 | Solder | 0.171 in | 4.35 mm | Surface Mount | Shrouded - 4 Wall | Board to Board Cable | 1 | All | Liquid Crystal Polymer (LCP) | Detent Lock | Copper Alloy | Pick and Place Solder Retention | Male Pin | Natural | Tin | -25 °C | 85 °C | Header | |
Harwin Inc. | 50 V | 0.039 in | 1 mm | Rectangular | 14 | UL94 V-0 | Solder | 0.169 " | 4.3 mm | Surface Mount | Shrouded - 4 Wall | Board to Cable/Wire | 1 | All | Nylon 9T Polyamide (PA9T) | Detent Lock | Phosphor Bronze | Pick and Place Solder Retention | Male Pin | Natural | Tin | -25 °C | 85 °C | Header | |
Harwin Inc. | 50 V | 0.039 in | 1 mm | Rectangular | 15 | UL94 V-0 | Solder | 0.169 " | 4.3 mm | Surface Mount | Shrouded - 4 Wall | Board to Cable/Wire | 1 | All | Nylon 9T Polyamide (PA9T) | Detent Lock | Phosphor Bronze | Pick and Place Solder Retention | Male Pin | Natural | Tin | -25 °C | 85 °C | Header | |
Harwin Inc. | 50 V | 0.039 in | 1 mm | Rectangular | 13 | UL94 V-0 | Solder | 0.169 " | 4.3 mm | Surface Mount | Shrouded - 4 Wall | Board to Cable/Wire | 1 | All | Nylon 9T Polyamide (PA9T) | Detent Lock | Phosphor Bronze | Pick and Place Solder Retention | Male Pin | Natural | Tin | -25 °C | 85 °C | Header | |
Harwin Inc. | 50 VAC | 0.039 in | 1 mm | Rectangular | UL94 V-0 | Solder | 0.167 in | 4.25 mm | Surface Mount | Shrouded - 4 Wall | Board to Cable/Wire | 1 | All | Liquid Crystal Polymer (LCP) Halogen Free | Push-Pull | Copper Alloy | Pick and Place | Male Pin | Cream | Tin | -25 °C | 85 °C | Header | 7.7 mm | |
Harwin Inc. | 50 V | 0.039 in | 1 mm | Rectangular | 10 | UL94 V-0 | Solder | 0.169 " | 4.3 mm | Surface Mount | Shrouded - 4 Wall | Board to Cable/Wire | 1 | All | Nylon 9T Polyamide (PA9T) | Detent Lock | Phosphor Bronze | Pick and Place Solder Retention | Male Pin | Natural | Tin | -25 °C | 85 °C | Header | |
Harwin Inc. | 50 VAC | 0.039 in | 1 mm | Rectangular | 6 | UL94 V-0 | Solder | 0.171 in | 4.35 mm | Surface Mount | Shrouded - 4 Wall | Board to Board Cable | 1 | All | Liquid Crystal Polymer (LCP) | Detent Lock | Copper Alloy | Pick and Place Solder Retention | Male Pin | Natural | Tin | -25 °C | 85 °C | Header |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
M40-301 Series
Connector Header Surface Mount 13 position 0.039" (1.00mm)
