09390100407

Active

HARTING Technology Group

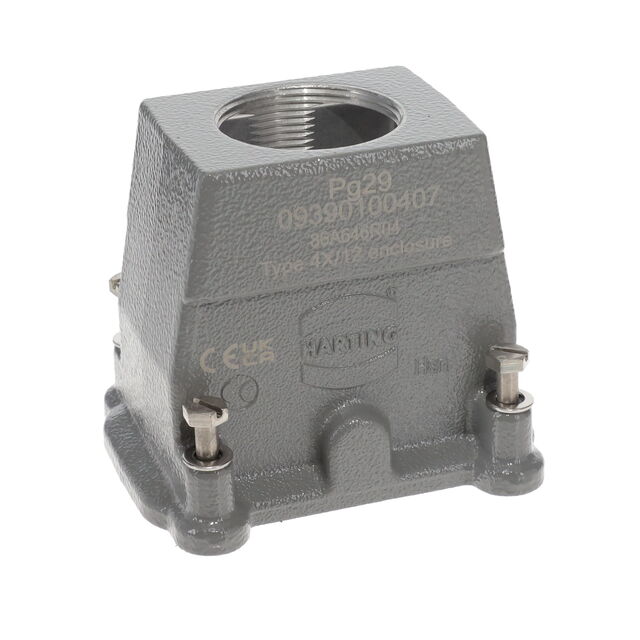

10B HP SCREW DOWN HOOD, TOP ENTRY, PG29

Search across all available documentation for this part.

Active

HARTING Technology Group

10B HP SCREW DOWN HOOD, TOP ENTRY, PG29

Technical Specifications

Parameters and characteristics for this part

Part	Lock Location	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Style	Thread Size	Connector Type	Ingress Protection	Size	Housing Finish	Housing Material	Housing Color	Operating Temperature [Max]	Operating Temperature [Min]
HARTING Technology Group 09390100406	Screw Locks on Hood	2.795 in	3.386 in	2.953 in	71 mm	75 mm	86 mm	Top Entry	PG21	Hood
HARTING Technology Group 09390100310	Screw Locks on Hood	2.583 "	3.661 inches	1.11 in	65.6 mm	28.2 mm	93 mm	Bottom Entry		Base - Panel Mount	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	10B	Powder Coated	Aluminum Die Cast	Gray	125 °C	-40 °C
HARTING Technology Group 09390100506	Screw Locks on Hood	2.795 in	3.386 in	2.953 in	71 mm	75 mm	86 mm	Side Entry	PG21	Hood
HARTING Technology Group 09390100407	Screw Locks on Hood	2.795 in	3.386 in	2.953 in	71 mm	75 mm	86 mm	Top Entry	PG29	Hood

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood Connector Top Entry PG29
