1SMB5942B-13
ActiveDiodes Inc
3.0W SURFACE MOUNT POWER ZENER DIODE
Deep-Dive with AI
Search across all available documentation for this part.
1SMB5942B-13
ActiveDiodes Inc
3.0W SURFACE MOUNT POWER ZENER DIODE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1SMB5942B-13 |
|---|---|
| Current - Reverse Leakage @ Vr | 1 µA |
| Impedance (Max) (Zzt) [Max] | 70 Ohms |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -65 ░C |

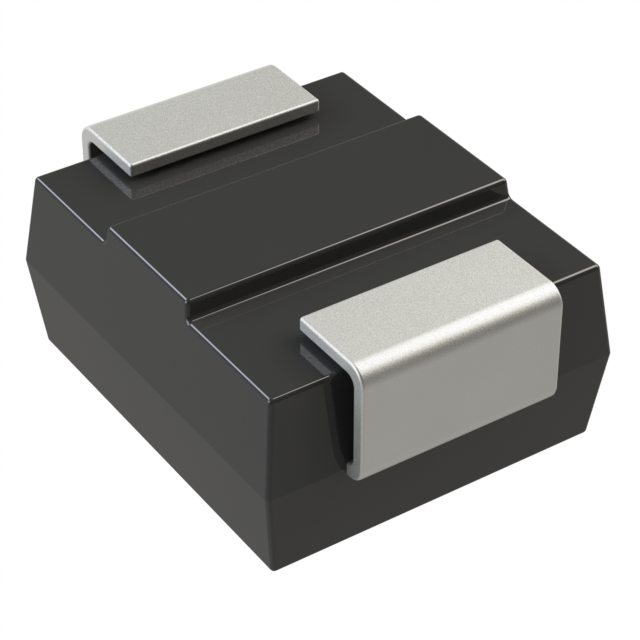

| Package / Case | SMB, DO-214AA |
| Power - Max [Max] | 3 W |
| Supplier Device Package | SMB |
| Tolerance | 5 % |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V |
| Voltage - Zener (Nom) (Vz) | 51 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.43 | |
| 10 | $ 0.29 | |||
| 100 | $ 0.20 | |||
| 500 | $ 0.15 | |||
| 1000 | $ 0.14 | |||
| Digi-Reel® | 1 | $ 0.43 | ||
| 10 | $ 0.29 | |||
| 100 | $ 0.20 | |||
| 500 | $ 0.15 | |||
| 1000 | $ 0.14 | |||
| Tape & Reel (TR) | 3000 | $ 0.10 | ||
Description
General part information
1SMB5942B Series
3.0W SURFACE MOUNT POWER ZENER DIODE
