Technical Specifications
Parameters and characteristics for this part
| Specification | STEVAL-IFP044V1 |
|---|---|
| Contents | Board(s) |
| Function | Driver |
| Interconnect System | ST Morpho, Arduino R3 Shield |
| Platform | Nucleo |
| Suggested Programming Environment | STM32Cube |
| Type | Power Management |
| Utilized IC / Part | IPS2050H-32 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 58.75 | |
Description
General part information
X-NUCLEO-OUT03A1 Series

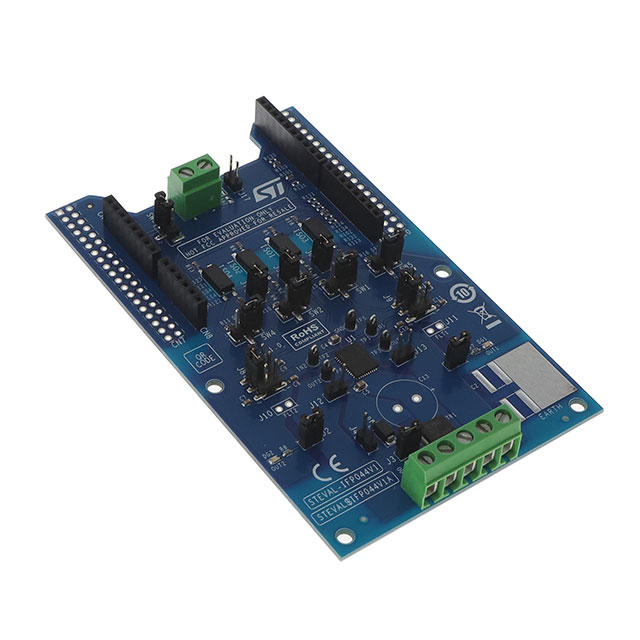

The X-NUCLEO-OUT03A1 industrial digital output expansion board for STM32 Nucleo provides a powerful and flexible environment for the evaluation of the driving and diagnostic capabilities of the IPS2050H (dual high-side smart power solid state relay) in a digital output module connected to 2.5 A (max.) industrial loads.
The X-NUCLEO-OUT03A1 interfaces with the microcontroller on the STM32 Nucleo via 5 kV optocouplers driven by GPIO pins, Arduino UNO R3 (default configuration) and ST morpho (optional, not mounted) connectors.
The expansion board can be connected to either a NUCLEO-F401RE or NUCLEO-G431RB development board.
