10090928-P264VLF
ActiveAmphenol ICC (FCI)
CONN D-SUB HD PLUG 26P VERT SLDR
Deep-Dive with AI
Search across all available documentation for this part.
10090928-P264VLF
ActiveAmphenol ICC (FCI)
CONN D-SUB HD PLUG 26P VERT SLDR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 10090928-P264VLF |
|---|---|
| Color | Black |
| Connector Style | High Density, D-Sub |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 2.5 A |
| Dielectric Material | Thermoplastic, Glass Filled |
| Features | Grounding Indents, Board Lock |
| Flange Feature | Board Side (4-40), Mating Side, Female Screwlock (4-40) |
| Mounting Type | Through Hole |
| Number of Positions | 26 |
| Number of Rows | 3 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 2 |
| Shell Size, Connector Layout | (DA, A) High Density |
| Termination | Solder |
| Voltage Rating | 250 VDC |
10090928 Series
| Part | Connector Style | Contact Finish Thickness | Contact Finish Thickness | Voltage Rating | Flange Feature | Color | Current Rating (Amps) | Contact Type | Number of Positions | Dielectric Material | Contact Finish | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Features | Shell Material, Finish | Material Flammability Rating | Mounting Type | Contact Material | Connector Type | Shell Size, Connector Layout | Shell Size, Connector Layout | Number of Rows | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Contact Finish Thickness | Shell Size, Connector Layout [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (FCI) | D-Sub High Density | 0.76 Ám | 30 Áin | 250 VDC | 4-40 Board Side | Black | 2.5 A | Signal | 78 | Thermoplastic Glass Filled | Gold | Solder | 105 ░C | -55 °C | Board Lock Grounding Indents | Nickel Plated Steel | UL94 V-0 | Through Hole | Copper Alloy | Male Pins Plug | ||||||||
Amphenol ICC (FCI) | D-Sub High Density | 0.76 Ám | 30 Áin | 250 VDC | Board Side (4-40) Mating Side Female Screwlock (4-40) | Black | 2.5 A | Signal | 26 | Thermoplastic Glass Filled | Gold | Solder | 105 ░C | -55 °C | Board Lock Grounding Indents | Nickel Plated Steel | UL94 V-0 | Through Hole | Copper Alloy | Male Pins Plug | 2 | (DA A) High Density | 3 | |||||
Amphenol ICC (FCI) | D-Sub High Density | 0.76 Ám | 30 Áin | 250 VDC | Board Side (4-40) Mating Side Female Screwlock (4-40) | Black | 2.5 A | Signal | 78 | Thermoplastic Glass Filled | Gold | Solder | 105 ░C | -55 °C | Board Lock Grounding Indents | Nickel Plated Steel | UL94 V-0 | Through Hole | Copper Alloy | Male Pins Plug | ||||||||
Amphenol ICC (FCI) | D-Sub High Density | 0.76 Ám | 30 Áin | 250 VDC | Board Side (4-40) Mating Side Female Screwlock (4-40) | Black | 2.5 A | Signal | 15 | Thermoplastic Glass Filled | Gold | Solder | 125 °C | -55 °C | Board Lock Grounding Indents | Nickel Plated Steel | UL94 V-0 | Through Hole | Brass | Male Pins Plug | 3 | DE E | 1 | High Density | ||||
Amphenol ICC (FCI) | D-Sub High Density | 0.76 Ám | 30 Áin | 250 VDC | Board Side (4-40) Mating Side Female Screwlock (4-40) | Black | 2.5 A | Signal | 15 | Thermoplastic Glass Filled | Gold | Solder | 105 ░C | -55 °C | Board Lock Grounding Indents | Nickel Plated Steel | UL94 V-0 | Through Hole | Copper Alloy | Male Pins Plug | 3 | DE E | 1 | High Density | ||||
Amphenol ICC (FCI) | D-Sub High Density | 0.76 Ám | 30 Áin | 250 VDC | 4-40 Board Side | Black | 2.5 A | Signal | 26 | Thermoplastic Glass Filled | Gold | Solder | 105 ░C | -55 °C | Board Lock Grounding Indents | Nickel Plated Steel | UL94 V-0 | Through Hole | Copper Alloy | Male Pins Plug | 2 | (DA A) High Density | 3 | |||||
Amphenol ICC (FCI) | D-Sub High Density | 250 VDC | 4-40 Board Side | Black | 2.5 A | Signal | 44 | Thermoplastic Glass Filled | Gold | Solder | 105 ░C | -55 °C | Board Lock Grounding Indents | Nickel Plated Steel | UL94 V-0 | Through Hole | Copper Alloy | Male Pins Plug | 3 | B DB | Flash | 3 | ||||||
Amphenol ICC (FCI) | D-Sub High Density | 250 VDC | Board Side (4-40) Mating Side Female Screwlock (4-40) | Black | 2.5 A | Signal | 26 | Thermoplastic Glass Filled | Gold | Solder | 105 ░C | -55 °C | Board Lock Grounding Indents | Nickel Plated Steel | Through Hole | Copper Alloy | Male Pins Plug | 2 | (DA A) High Density | 3 | Flash | |||||||
Amphenol ICC (FCI) | D-Sub High Density | 250 VDC | Board Side (4-40) Mating Side Female Screwlock (4-40) | Black | 2.5 A | Signal | 62 | Thermoplastic Glass Filled | Gold | Solder | 105 ░C | -55 °C | Board Lock Grounding Indents | Nickel Plated Steel | UL94 V-0 | Through Hole | Copper Alloy | Male Pins Plug | 4 | 3 | Flash | |||||||
Amphenol ICC (FCI) | D-Sub High Density | 0.76 Ám | 30 Áin | 250 VDC | 4-40 Board Side | Black | 2.5 A | Signal | 62 | Thermoplastic Glass Filled | Gold | Solder | 105 ░C | -55 °C | Board Lock Grounding Indents | Nickel Plated Steel | UL94 V-0 | Through Hole | Copper Alloy | Male Pins Plug | 4 | 3 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 4.23 | |
| 10 | $ 2.87 | |||
| 25 | $ 2.82 | |||
| 40 | $ 2.78 | |||
| 80 | $ 2.74 | |||
| 230 | $ 2.68 | |||
| 440 | $ 2.58 | |||
| 945 | $ 2.39 | |||
| 2400 | $ 2.19 | |||
Description
General part information
10090928 Series

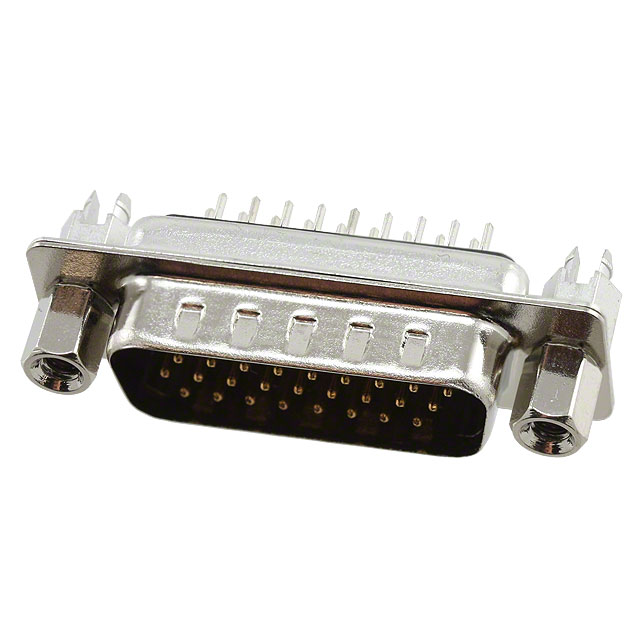

26 Position D-Sub, High Density Plug, Male Pins Connector
