HRM-202(40)

Active

Hirose Electric USA, Inc.

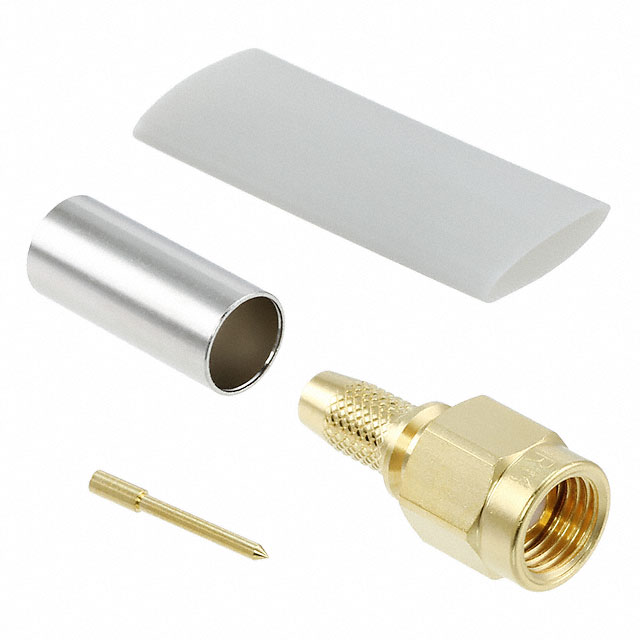

CONN SMA PLUG STR 50OHM SOLDER

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN SMA PLUG STR 50OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	HRM-202(40)

Body Finish	Gold
Body Material	Stainless Steel
Cable Group	RG-142B
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12.4 GHz
Housing Color	Gold
Impedance	50 Ohms
Includes	1 Heat Shrink, 2 pcs - 1 Connector
Insertion Loss	0.1 dB
Mating Cycles	1000
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Shield Termination	Crimp

Part	Frequency - Max [Max]	Center Contact Material	Number of Ports	Mounting Type	Connector Type	Shield Termination	Insertion Loss	Housing Color	Connector Style	Body Finish	Includes	Body Material	Dielectric Material	Center Contact Plating	Impedance	Contact Termination	Operating Temperature [Min]	Operating Temperature [Max]	Cable Group	Mating Cycles
Hirose Electric USA, Inc. HRM-202-2.5DQS
Hirose Electric USA, Inc. HRM-202B-2.5DGXC(40)
Hirose Electric USA, Inc. HRM-202(40)	12.4 GHz	Brass	1	Free Hanging (In-Line)	Male Pin Plug	Crimp	0.1 dB	Gold	SMA	Gold	1 Heat Shrink 2 pcs - 1 Connector	Stainless Steel	Polytetrafluoroethylene (PTFE)	Gold	50 Ohms	Solder	-30 ░C	85 °C	RG-142B	1000
Hirose Electric USA, Inc. HRM-202B(40)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
