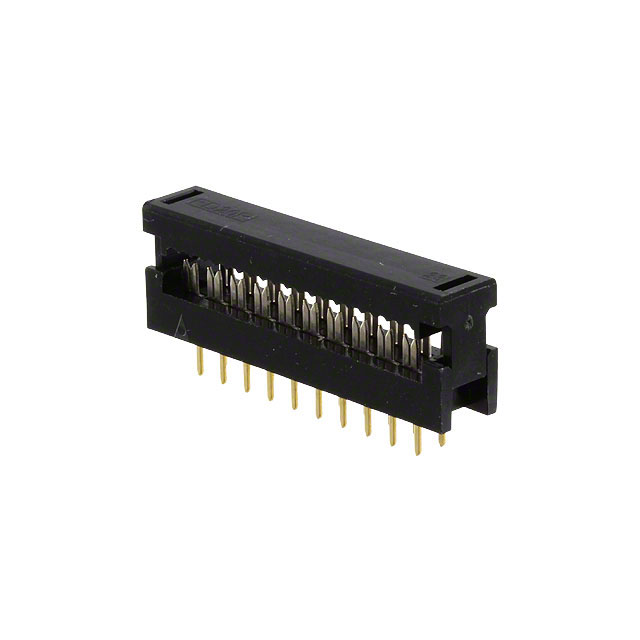

3040-20-00
ActiveCnC Tech, LLC
CONN DIP PLG IDC 20POS VERT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3040-20-00
ActiveCnC Tech, LLC
CONN DIP PLG IDC 20POS VERT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3040-20-00 |
|---|---|
| Board-Side Pitch | 0.1 in |
| Board-Side Pitch | 2.54 mm |
| Cable Pitch | 1.27 mm |
| Cable Pitch | 0.05 in |
| Cable Termination | IDC |
| Connector Type | Ribbon Cable, DIP Header |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Features | Feed Through |
| Mounting Type | Through Hole |
| Number of Positions | 20 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Row Spacing [x] | 0.1 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 0.43 | |
| 10 | $ 0.38 | |||
| 25 | $ 0.34 | |||
| 40 | $ 0.32 | |||
| 80 | $ 0.31 | |||
| 230 | $ 0.28 | |||
| 440 | $ 0.27 | |||
| 1440 | $ 0.24 | |||
Description
General part information
3040-20 Series
20 Position Ribbon Cable, DIP Header Connector IDC Through Hole
