19300067296

Active

HARTING Technology Group

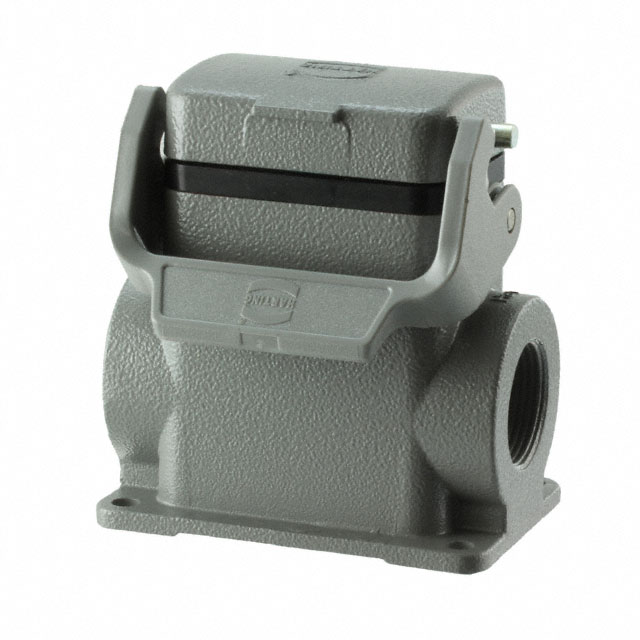

HEAVY DUTY HOUSING, 6B, 1 LEVER, ALUM

Search across all available documentation for this part.

Active

HARTING Technology Group

HEAVY DUTY HOUSING, 6B, 1 LEVER, ALUM

Technical Specifications

Parameters and characteristics for this part

Specification	19300067296

Connector Type	Base - Box Mount
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	6B
Size / Dimension [x]	3.228 in
Size / Dimension [x]	82 mm
Size / Dimension [y]	2.244 "
Size / Dimension [y]	57 mm
Size / Dimension [z]	2.906 "
Size / Dimension [z]	73.8 mm
Style	Side Entry
Thread Size	M25

Part	Housing Color	Style	Ingress Protection	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Thread Size	Connector Type	Housing Material	Housing Finish	Size	Operating Temperature [Max]	Operating Temperature [Min]	Lock Location
HARTING Technology Group 19300067297	Gray	Side Entry Dual	IP65 - Dust Tight Water Resistant	3.228 in	2.906 "	2.244 "	73.8 mm	57 mm	82 mm	M32	Base - Box Mount	Aluminum Die Cast	Powder Coated	6B	125 °C	-40 °C	Locking Clip (1) on Base Bottom
HARTING Technology Group 19300067296	Gray	Side Entry	IP65 - Dust Tight Water Resistant	3.228 in	2.906 "	2.244 "	73.8 mm	57 mm	82 mm	M25	Base - Box Mount	Aluminum Die Cast	Powder Coated	6B	125 °C	-40 °C	Locking Clip (1) on Base Bottom

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Base - Box Mount Connector Side Entry M25 6B IP65 - Dust Tight, Water Resistant
