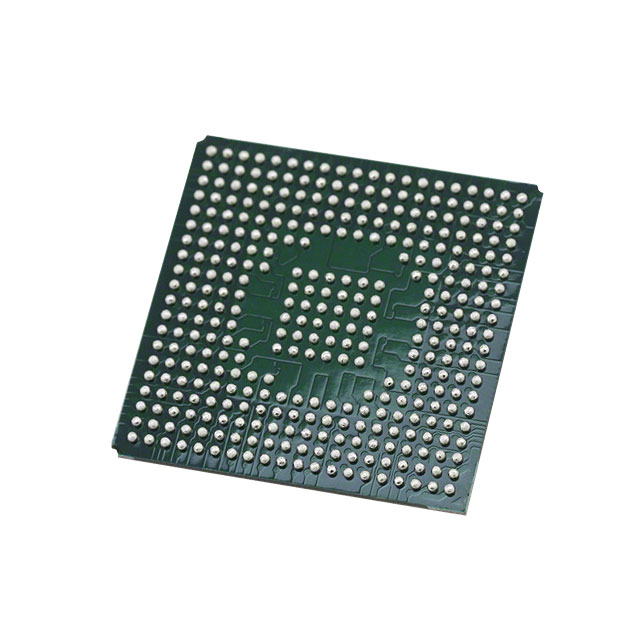

EP9315-IBZ

Obsolete

Cirrus Logic Inc.

IC MPU EP9 200MHZ 352BGA

Search across all available documentation for this part.

Obsolete

Cirrus Logic Inc.

IC MPU EP9 200MHZ 352BGA

Technical Specifications

Parameters and characteristics for this part

Specification	EP9315-IBZ

Additional Interfaces	AC'97, UART, SPI, I2S, IDE, IrDA
Co-Processors/DSP	MaverickCrunch™, Math Engine
Core Processor	ARM920T
Display & Interface Controllers	Touchscreen, Keypad, LCD
Ethernet	10 Mbps, 1 Mbps, 100 Mbps
Graphics Acceleration	True
Mounting Type	Surface Mount
Number of Cores/Bus Width	32 Bit, 1 Core
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	352-BBGA
Security Features	Hardware ID
Speed	200 MHz
Supplier Device Package	352-PBGA
Supplier Device Package [x]	27
Supplier Device Package [y]	27
USB	USB 2.0 (3)
Voltage - I/O	3.3 V, 1.8 V

Part	Security Features	Display & Interface Controllers	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Mounting Type	Speed	USB	Supplier Device Package	Supplier Device Package [x]	Supplier Device Package [y]	Voltage - I/O	Ethernet	Number of Cores/Bus Width	Co-Processors/DSP	Core Processor	Additional Interfaces
Cirrus Logic Inc. EP9315-CB	Hardware ID	Keypad LCD Touchscreen	70 °C	0 °C	352-BBGA	Surface Mount	200 MHz	USB 2.0 (3)	352-PBGA	27	27	1.8 V 3.3 V	1 Mbps 10 Mbps 100 Mbps	1 Core 32 Bit	Math Engine MaverickCrunch™	ARM920T	AC'97 I2S IDE IrDA SPI UART
Cirrus Logic Inc. EP9315-IBZ	Hardware ID	Keypad LCD Touchscreen	85 °C	-40 °C	352-BBGA	Surface Mount	200 MHz	USB 2.0 (3)	352-PBGA	27	27	1.8 V 3.3 V	1 Mbps 10 Mbps 100 Mbps	1 Core 32 Bit	Math Engine MaverickCrunch™	ARM920T	AC'97 I2S IDE IrDA SPI UART
Cirrus Logic Inc. EP9315-CBZ	Hardware ID	Keypad LCD Touchscreen	70 °C	0 °C	352-BBGA	Surface Mount	200 MHz	USB 2.0 (3)	352-PBGA	27	27	1.8 V 3.3 V	1 Mbps 10 Mbps 100 Mbps	1 Core 32 Bit	Math Engine MaverickCrunch™	ARM920T	AC'97 I2S IDE IrDA SPI UART

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

ARM920T Microprocessor IC EP9 1 Core, 32-Bit 200MHz 352-PBGA (27x27)
