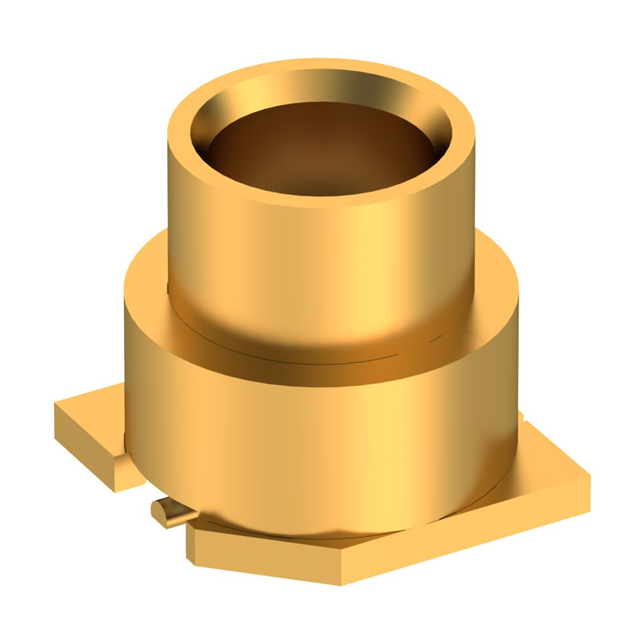

R299137801
ActiveRadiall USA, Inc.
R-MCX / SMT SWITCH REEL OF 900
Deep-Dive with AI
Search across all available documentation for this part.
R299137801
ActiveRadiall USA, Inc.
R-MCX / SMT SWITCH REEL OF 900
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | R299137801 |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | RP-MCX |
| Connector Type | Male Pin, Receptacle |
| Contact Termination | Solder |
| Dielectric Material | Polyphenylene Sulfide (PPS) |
| Fastening Type | Snap-On |
| Frequency - Max [Max] | 4 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Mating Cycles | 80000 |
| Mounting Type | Surface Mount |
| Number of Ports | 1 |
| Operating Temperature [Max] | 110 °C |
| Operating Temperature [Min] | -40 °C |
| Shield Termination | Solder |
| Voltage Rating | 100 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 14.23 | |
| 10 | $ 10.12 | |||
| 25 | $ 9.06 | |||
| 100 | $ 7.88 | |||
| 250 | $ 7.30 | |||
| Digi-Reel® | 1 | $ 14.23 | ||
| 10 | $ 10.12 | |||
| 25 | $ 9.06 | |||
| 100 | $ 7.88 | |||
| 250 | $ 7.30 | |||
| Tape & Reel (TR) | 900 | $ 7.95 | ||
Description
General part information
R29913 Series
RP-MCX Connector Receptacle, Male Pin 50 Ohms Surface Mount Solder
