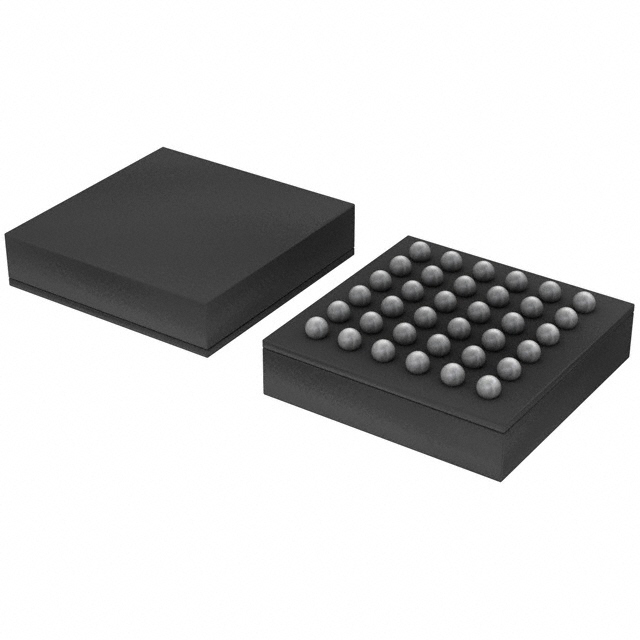

SC16C852SVIET,151

Obsolete

Freescale Semiconductor - NXP

IC UART DUAL W/FIFO 36-TFBGA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SC16C852SVIET,151

Obsolete

Freescale Semiconductor - NXP

IC UART DUAL W/FIFO 36-TFBGA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SC16C852SVIET,151

Data Rate (Max)	20 Mbps
FIFO's	128 Byte
Mounting Type	Surface Mount
Number of Channels	2
Package / Case	36-TFBGA
Protocol	RS485
Supplier Device Package	36-TFBGA (3.5x3.5)
Voltage - Supply	1.8 V
With Auto Flow Control	True
With False Start Bit Detection	True
With IrDA Encoder/Decoder	True
With Modem Control	True

SC16 Series

...

Part	FIFO's	Supplier Device Package	Voltage - Supply	Number of Channels	Mounting Type	Package / Case	Data Rate (Max)	Protocol	Current - Supply	Function	Interface	Operating Temperature [Min]	Operating Temperature [Max]	Number of Channels [custom]	Number of Channels [custom]	Number of Channels	Number of Channels [custom]	Data Rate (Max) [Max]	Package / Case
Freescale Semiconductor - NXP SC16C852SVIET,151	128 Byte	36-TFBGA (3.5x3.5)	1.8 V	2	Surface Mount	36-TFBGA	20 Mbps	RS485
Freescale Semiconductor - NXP SC16IS762IBS,157		32-HVQFN (5x5)	2.5 V 3.3 V			32-VFQFN Exposed Pad		RS232 RS485	2 mA	Controller	I2C SPI UART	-40 °C	203 °F
Freescale Semiconductor - NXP SC16C650BIBS,151	32 Byte	32-HVQFN (5x5)	2.5 V 3.3 V 5 V		Surface Mount	32-VFQFN Exposed Pad								UART	1
Freescale Semiconductor - NXP SC16C654IA68,512		68-PLCC (24.18x24.18)	2.5 V 3.3 V 5 V		Surface Mount	68-LCC (J-Lead)										QUART	4	5 Mbps
Freescale Semiconductor - NXP SC16C550IA44,518	16 Byte	44-PLCC (16.59x16.59)	2.5 V 3.3 V 5 V		Surface Mount	44-LCC (J-Lead)								UART	1
Freescale Semiconductor - NXP SC16C550BIA44,529	16 Byte	44-PLCC (16.59x16.59)	2.5 V 3.3 V 5 V		Surface Mount	44-LCC (J-Lead)								UART	1
Freescale Semiconductor - NXP SC16C852LIBS,157	128 Byte	32-HVQFN (5x5)	1.8 V	2	Surface Mount	32-VFQFN Exposed Pad		RS485										5 Mbps
Freescale Semiconductor - NXP SC16IS750IPW-T		24-TSSOP	2.5 V 3.3 V			24-TSSOP		RS232 RS485	6 mA	Controller	I2C SPI UART	-40 °C	203 °F						0.173 in 4.4 mm
Freescale Semiconductor - NXP SC16C550BIA44,518	16 Byte	44-PLCC (16.59x16.59)	2.5 V 3.3 V 5 V		Surface Mount	44-LCC (J-Lead)								UART	1
Freescale Semiconductor - NXP SC16C752IB48,128		48-LQFP (7x7)	2.5 V 3.3 V 5 V	2	Surface Mount	48-LQFP												5 Mbps

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SC16 Series

UART IC 2, DUART Channel RS485 128 Byte 36-TFBGA (3.5x3.5)
