10380-12R1-00

Active

3M (TC)

3M MINI D RIBBON (MDR) CONNECTORS, 103 SERIES, 10380-12R1-00 ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

3M (TC)

3M MINI D RIBBON (MDR) CONNECTORS, 103 SERIES, 10380-12R1-00 ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Shielding	Accessory Type	Number of Positions	Plating	Features	Primary Material	Color	Cable Exit	Material [custom]	Material [custom]	Cable Type	Material	Hardware
3M (TC) 10380-3280-000-1	Shielded	Two Piece Backshell and Cover	80	Nickel	Latch Lock	Metal	Beige	180 °	Plastic Steel	Metal	Round
3M (TC) 10380-C500-00	Shielded	Two Piece Backshell	80	Nickel	Latch Lock	Metal	Silver	60 °			Round	Zinc Alloy
3M (TC) 10380-12R1-00	Shielded	Two Piece Backshell	80	Nickel	Mating Screws 4-40	Metal	Silver	180 °			Flat	Metal Zinc	Assembly Hardware Gasket
3M (TC) 10380-A500-00	Shielded	Two Piece Backshell	80	Nickel	Latch Lock	Metal	Silver	60 °			Round	Metal Zinc Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

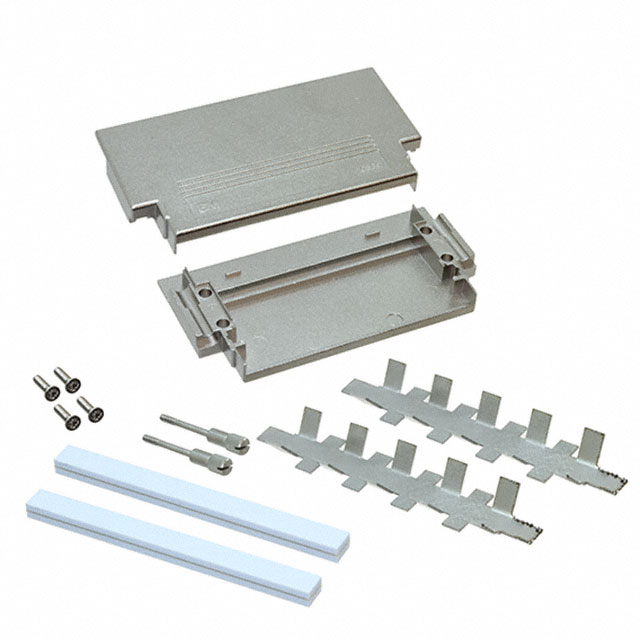

80 Position Two Piece Backshell Connector Silver 180° Shielded
