HLMPD150A
ActiveEverlight Electronics Co Ltd

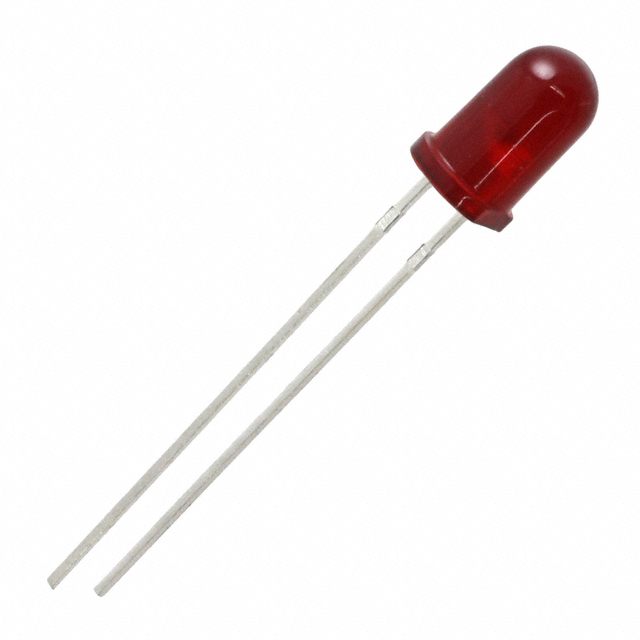

SINGLE COLOR LED, DEEP RED, DIFFUSED RED, T-1 3/4, 5MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HLMPD150A
ActiveEverlight Electronics Co Ltd
SINGLE COLOR LED, DEEP RED, DIFFUSED RED, T-1 3/4, 5MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HLMPD150A |
|---|---|
| Color | Red |
| Configuration | Standard |
| Current - Test | 1 mA |
| Height (Max) [Max] [z] | 12.44 mm |
| Lens Color | Red |
| Lens Size | T-1 3/4 |
| Lens Size | 5 mm |
| Lens Style | Round with Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 3 mcd |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Supplier Device Package | T-1 3/4 |
| Viewing Angle | 65 ° |
| Voltage - Forward (Vf) (Typ) | 1.6 V |
| Wavelength - Peak | 660 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.36 | |
| 10 | $ 0.24 | |||
| 250 | $ 0.16 | |||
| 500 | $ 0.11 | |||
| 1000 | $ 0.09 | |||
| 2000 | $ 0.08 | |||
| 5000 | $ 0.08 | |||
| 10000 | $ 0.07 | |||
| 25000 | $ 0.07 | |||
Description
General part information
HLMPD150 Series
Red LED Indication - Discrete 1.6V Radial
