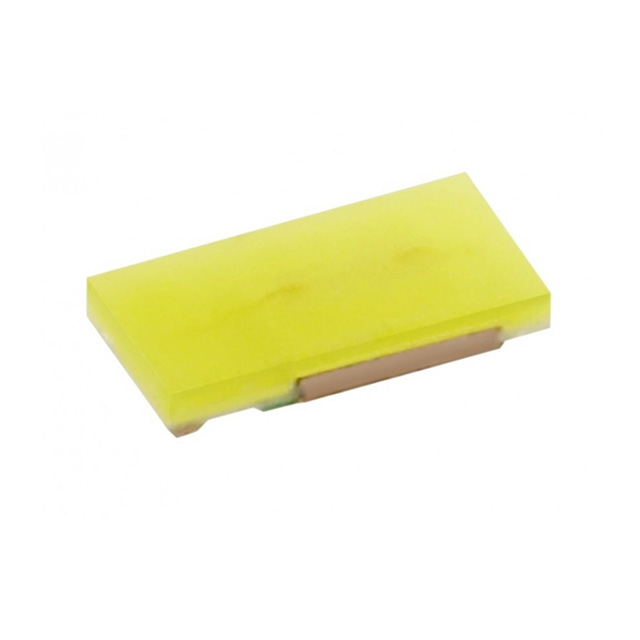

EAST16082WA3

Active

Everlight Electronics Co Ltd

LED WHITE DIFFUSED 2SMD

Search across all available documentation for this part.

Active

Everlight Electronics Co Ltd

LED WHITE DIFFUSED 2SMD

Technical Specifications

Parameters and characteristics for this part

Part	Height (Max) [Max]	Supplier Device Package	Color	Configuration	Mounting Type	Current - Test	Lens Color	Millicandela Rating	Lens Style	Voltage - Forward (Vf) (Typ)	Package / Case	Viewing Angle	Lens Transparency	Lens Size [y]	Lens Size [x]	Size / Dimension [x]	Size / Dimension [y]	Wavelength - Dominant	Wavelength - Peak
Everlight Electronics Co Ltd EAST16082WA0	0.25 mm	2-SMD	White	Standard	Surface Mount	5 mA	Yellow	135 mcd	Rectangle with Flat Top	2.8 V	0603 (1608 Metric)	130 °	Diffused	0.8 mm	1.6 mm	1.6 mm	0.8 mm
Everlight Electronics Co Ltd EAST16082YA0	0.25 mm		Yellow	Standard	Surface Mount	5 mA	Colorless	32 mcd	Rectangle with Flat Top	2 V	0603 (1608 Metric)	120 °	Clear	0.8 mm	1.6 mm	1.6 mm	0.8 mm	590 nm	591 nm
Everlight Electronics Co Ltd EAST16082WA3	0.25 mm	2-SMD	White	Standard	Surface Mount	10 mA	Yellow		Rectangle with Flat Top	3.2 V	0603 (1608 Metric)	130 °	Diffused	0.8 mm	1.6 mm	1.6 mm	0.8 mm
Everlight Electronics Co Ltd EAST16082WA1	0.25 mm	2-SMD	White	Standard	Surface Mount	20 mA	Yellow	1068 mcd	Rectangle with Flat Top	3.2 V	0603 (1608 Metric)	130 °	Diffused	0.8 mm	1.6 mm	1.6 mm	0.8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

White LED Indication - Discrete 3.2V 0603 (1608 Metric)
