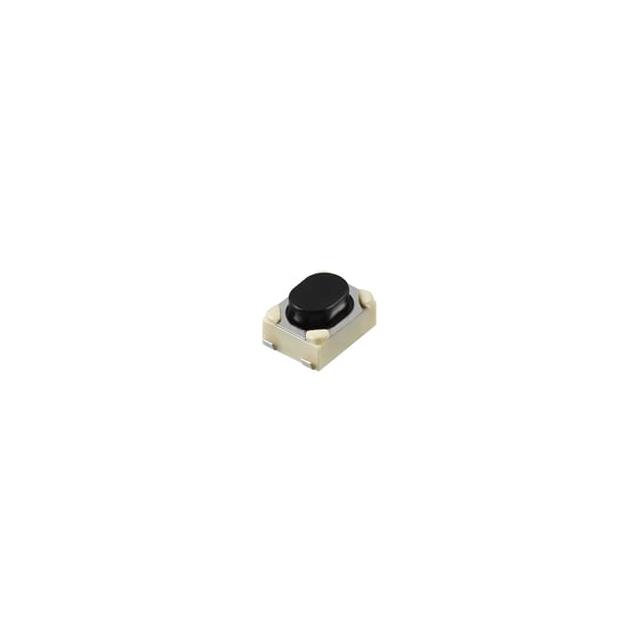

SKRPADE010

Active

Alps Alpine

TACTILE SWITCH, 0.05A, 16VDC, SMD ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Alps Alpine

TACTILE SWITCH, 0.05A, 16VDC, SMD ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	SKRPADE010

Actuator Height off PCB, Vertical [z]	2.5 mm
Actuator Orientation	Top Actuated
Actuator Type	Oval Button
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 16 VDC
Illumination	Non-Illuminated
Mechanical Life	100000 Cycles
Mounting Type	Surface Mount
Operating Force	408 gf
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-40 °C
Outline [x]	4.2 mm
Outline [y]	3.2 mm
Switch Function	Off-Mom
Switch Travel	0.2 mm
Termination Style	J Lead

Part	Contact Rating @ Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Outline [y]	Outline [x]	Actuator Orientation	Actuator Height off PCB, Vertical [z]	Switch Travel	Termination Style	Illumination	Mounting Type	Actuator Type	Mechanical Life	Operating Force	Circuit
Alps Alpine SKRPADE010	0.05 A 16 VDC	90 °C	-40 °C	Off-Mom	3.2 mm	4.2 mm	Top Actuated	2.5 mm	0.2 mm	J Lead	Non-Illuminated	Surface Mount	Oval Button	100000 Cycles	408 gf	SPST-NO
Alps Alpine SKRPACE010	0.05 A 16 VDC	85 °C	-30 ░C	Off-Mom	3.2 mm	4.2 mm	Top Actuated	2.5 mm	0.2 mm	J Lead	Non-Illuminated	Surface Mount	Oval Button		260 gf	SPST-NO

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Surface Mount
