MDS-060AAS15 BA

Obsolete

Delta Electronics

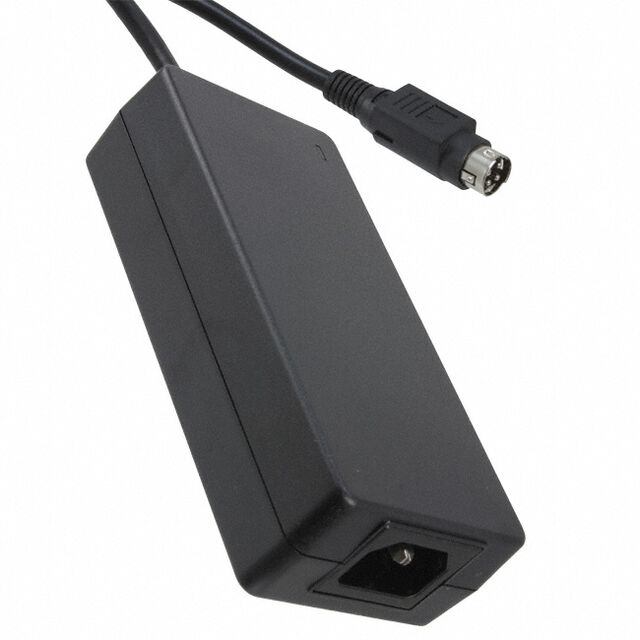

AC/DC DESKTOP ADAPTER 15V 60W

Search across all available documentation for this part.

Obsolete

Delta Electronics

AC/DC DESKTOP ADAPTER 15V 60W

Technical Specifications

Parameters and characteristics for this part

Part	Applications	Input Connector	Form	No Load Power Consumption	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Cord Length	Cord Length	Current - Output (Max) [Max]	Output Connector	Output Connector	Region Utilized	Input Type	Approval Agency	Standard Number	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Output	Voltage - Input [Min]	Voltage - Input [Max]	Power (Watts)	Weight	Weight
Delta Electronics MDS-060AAS24 BA	ITE (Commercial) Medical	IEC 320-C14	Desktop (Class I)	500 mW	40 °C	0 °C	Level VI	1.2 m	47.2 in	2.5 A	4 Pin	Power DIN	International	Cord	CB Scheme CE EN UL	50581 55011 55032 60601-1 60950-1	135 mm	62 mm	5.31 "	1.34 in	2.44 "	34.1 mm	24 V	90 VAC	275 VAC	60 W	0.553 lb	250.84 g
Delta Electronics MDS-060AAS15 BA	ITE (Commercial) Medical	IEC 320-C14	Desktop (Class I)	500 mW	40 °C	0 °C	Level VI	1.2 m	47.2 in	4 A	4 Pin	Power DIN	International	Cord	CB Scheme CE EN UL	50581 55011 55032 60601-1 60950-1	135 mm	62 mm	5.31 "	1.34 in	2.44 "	34.1 mm	15 VDC	90 VAC	275 VAC	60 W	0.553 lb	250.84 g

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

15V 60 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input

Technical documentation and resources
