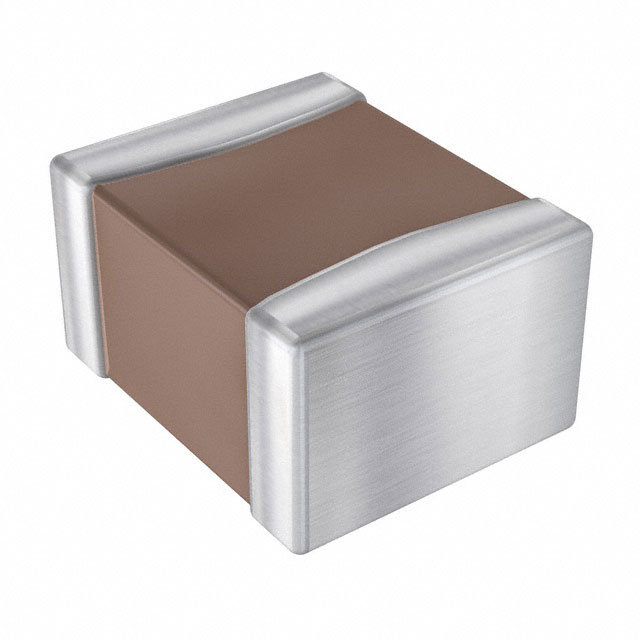

VJ13MC0600KBA

Active

Kyocera AVX

TVS VARISTOR, 42 V, 60 V, TRANSGUARD SERIES, 126 V, 1210 [3225 METRIC], MULTILAYER VARISTOR (MLV)

Search across all available documentation for this part.

Active

Kyocera AVX

TVS VARISTOR, 42 V, 60 V, TRANSGUARD SERIES, 126 V, 1210 [3225 METRIC], MULTILAYER VARISTOR (MLV)

Technical Specifications

Parameters and characteristics for this part

Part	Varistor Voltage (Typ)	Varistor Voltage (Max) [Max]	Maximum AC Volts [Max]	Package / Case	Package / Case	Varistor Voltage (Min) [Min]	Energy	Maximum DC Volts [Max]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Current - Surge	Number of Circuits	Capacitance @ Frequency	Varistor Voltage (Min)
Kyocera AVX VJ13MC0180KBA	24 V	26.5 V	13 V	1210	3225 Metric	21.5 V	1.5 J	18 V	Surface Mount MLCV	125 °C	-55 °C	500 A	1	2200 pF
Kyocera AVX VJ13MC0300KBA	39 V	43 V	21 V	1210	3225 Metric	35 V	0.9 J	30 V	Surface Mount MLCV	125 °C	-55 °C	220 A	1	1000 pF
Kyocera AVX VJ13MC0600KBA	75 V	83 V	42 V	1210	3225 Metric	67 V	1.5 J	60 V	Surface Mount MLCV	125 °C	-55 °C	250 A	1	400 pF
Kyocera AVX VJ13MC0260KBA	33 V	36.3 V	18 V	1210	3225 Metric		1.2 J	26 V	Surface Mount MLCV	125 °C	-55 °C	300 A	1	1200 pF	29.7 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

75 V 250 A Varistor 1 Circuit Surface Mount, MLCV 1210 (3225 Metric)
