356-042-500-178
ActiveEDAC Inc.
CARD EDGE CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
356-042-500-178
ActiveEDAC Inc.
CARD EDGE CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 356-042-500-178 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Guides |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Number of Positions | 84 |
| Number of Positions/Bay/Row [custom] | 42 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder Eyelet(s) |
| Termination Rows | 1 |
356-042 Series
| Part | Contact Finish Thickness | Contact Finish Thickness | Pitch [x] | Pitch [x] | Material - Insulation | Color | Termination Rows | Gender | Mounting Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Rows | Number of Positions | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Contact Type | Number of Positions/Bay/Row [custom] | Termination | Read Out | Card Type | Contact Finish | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | Polyester Thermoplastic | Black | 1 | Female | Panel Mount Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 84 | Copper Alloy | -40 °C | 105 ░C | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | Cantilever | 42 | Solder | Dual | Non Specified - Dual Edge | Gold | |
EDAC Inc. | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | Polyester Thermoplastic | Black | 1 | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 84 | Copper Alloy | -40 °C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | Cantilever | 42 | Solder Eyelet(s) | Dual | Non Specified - Dual Edge | Gold | Card Guides | |||
EDAC Inc. | 0.156 in | 3.96 mm | Polyester Thermoplastic | Black | 1 | Female | Panel Mount Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 84 | Copper Alloy | -40 °C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | Cantilever | 42 | Solder | Dual | Non Specified - Dual Edge | Tin | Card Guides | ||||
EDAC Inc. | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | Polyester Thermoplastic | Black | 1 | Female | Panel Mount Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 84 | Copper Alloy | -40 °C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | Cantilever | 42 | Solder | Dual | Non Specified - Dual Edge | Gold | Card Guides | ||
EDAC Inc. | 0.156 in | 3.96 mm | Polyester Thermoplastic | Black | 1 | Female | Panel Mount Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 84 | Copper Alloy | -40 °C | 105 ░C | Flush Mount M3 Threaded Insert Top Opening | Cantilever | 42 | Solder | Dual | Non Specified - Dual Edge | Tin | |||||
EDAC Inc. | 0.156 in | 3.96 mm | Polyester Thermoplastic | Black | 1 | Female | Panel Mount Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 84 | Copper Alloy | -40 °C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | Cantilever | 42 | Solder | Dual | Non Specified - Dual Edge | Tin | |||||
EDAC Inc. | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | Polyester Thermoplastic | Black | 1 | Female | Panel Mount Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 84 | Copper Alloy | -40 °C | 105 ░C | Flush Mount M3 Threaded Insert Top Opening | Cantilever | 42 | Solder | Dual | Non Specified - Dual Edge | Gold | |||
EDAC Inc. | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | Polyester Thermoplastic | Black | 1 | Female | Free Hanging (In-Line) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 84 | Copper Alloy | -40 °C | 105 ░C | Cantilever | 42 | Solder Eyelet(s) | Dual | Non Specified - Dual Edge | Gold | ||||
EDAC Inc. | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | Polyester Thermoplastic | Black | 1 | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 84 | Copper Alloy | -40 °C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | Cantilever | 42 | Solder Eyelet(s) | Dual | Non Specified - Dual Edge | Gold | Card Guides | |||
EDAC Inc. | 0.156 in | 3.96 mm | Polyester Thermoplastic | Black | 1 | Female | Panel Mount Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 84 | Copper Alloy | -40 °C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | Cantilever | 42 | Solder | Dual | Non Specified - Dual Edge | Tin | Card Guides |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
356-042 Series

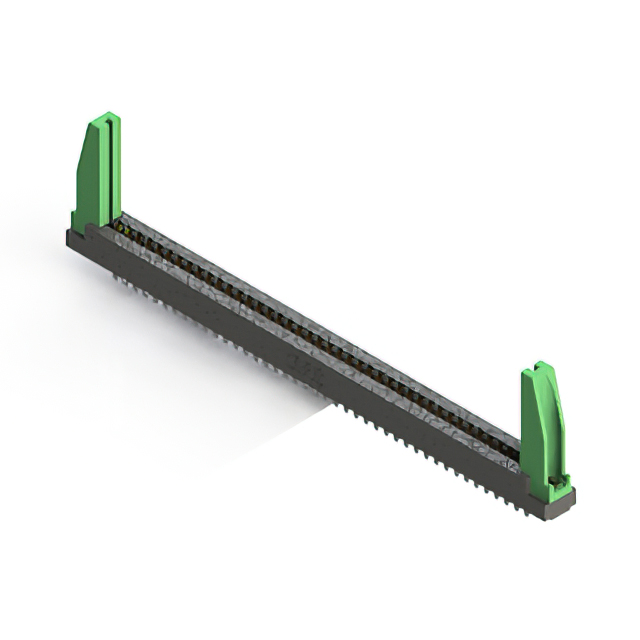

84 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
